CS-1111-2540-16-S2 - Datasheet

MBA

Category Information

Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

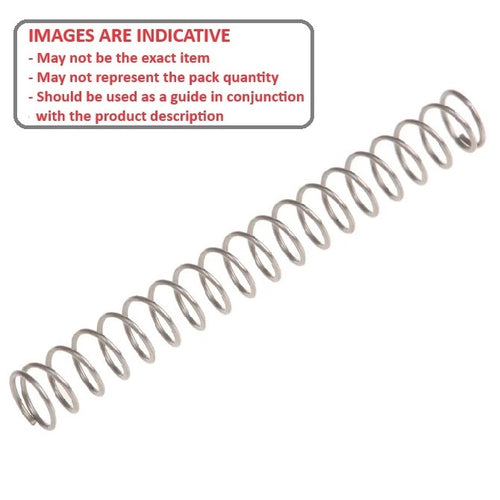

Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
This category includes short and long lengths.
If the end type is important to your application please contact us for more information or a special quote.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

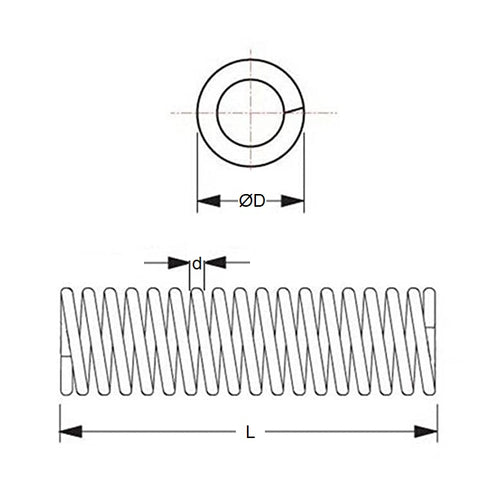

Spring OD (D0) : 11.11 mm _{+/- 0.203}
(Equiv. 0.437 in.)
Free Length (L0) 254.0 mm _{+/- 7.62}
(Equiv. 10 in.)
Wire Diameter (d) 1.60 mm _{+/- 0.02}
(Equiv. 0.063 in.)
Approx. ID 7.9 mm
End Type Open
Max Rod Dia. (A) 7.35 mm
Material Stainless Steel 302/304 (Similar to A2, 18-8)

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

SSS24
SSS-24
