W0111-T-018-022-WC-S2 - Datasheet
MBA
Category Information

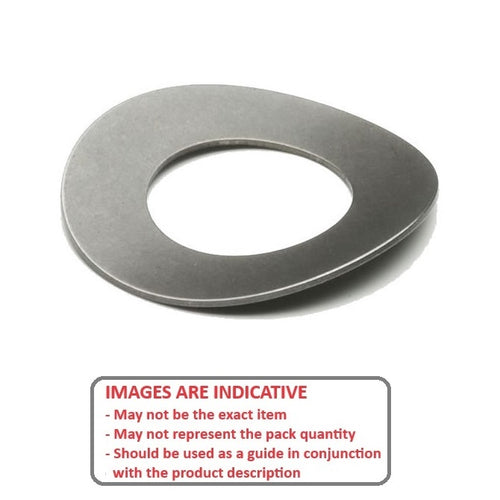

Washers - Spring - Curved - Stainless SteelStainless Steel Curved Spring Washers. Stainless steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions

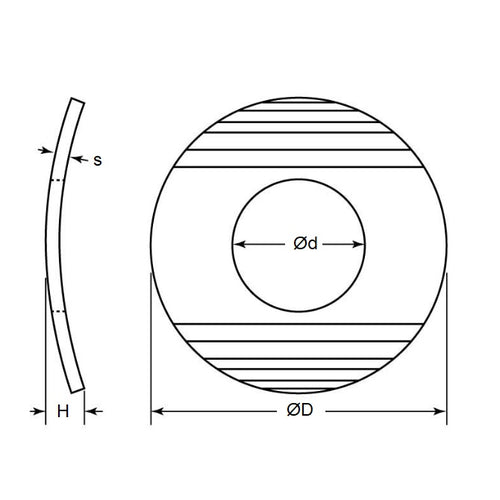

Product Data
- Nominal Inside Diameter (B) : 11.11 mm
- Nominal Outside Diameter (A) 17.40 mm
- Nom. Height (C) 2.18 mm
- Thickness (D) 0.38 mm
- Info Made In USA
- Type Curved DIN 137 Type A
- Nominal Screw Size M11, 7/16
- Actual ID (Ref) 11.9 mm
- Material Stainless Steel 301 (Similar to A2 or 302 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Huyett® CW-437-015-SS
- NoCor® CW-437-015-SS
- CW437015SS
