Miniature Bearings Australia
COL-01111-022-11-CZ - Datasheet
MBA
Category Information

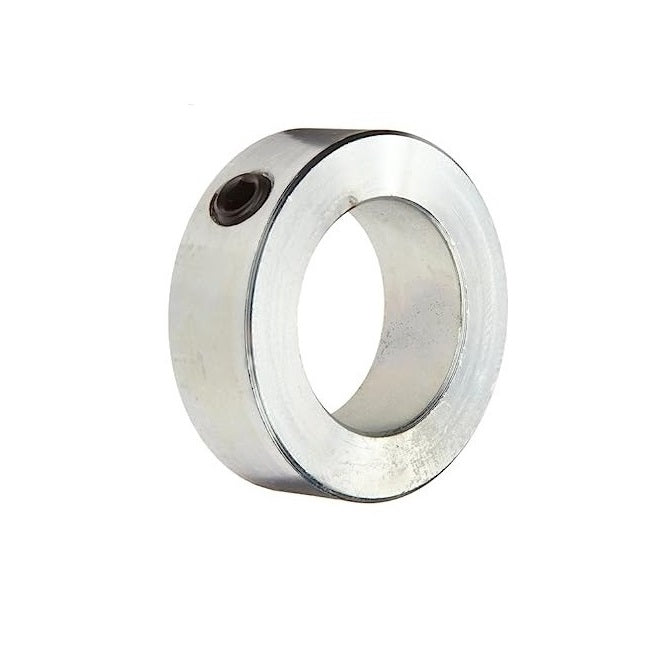

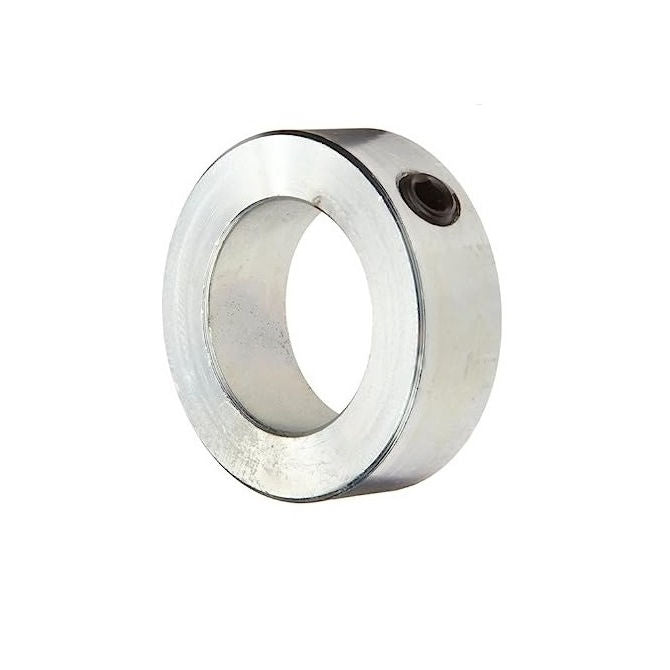

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
11.113
mm
+ 0.051 / - 0.000
(Equiv. 0.438 in.) - Outside Diameter (D)
22.20
mm
(Equiv. 0.874 in.) - Overall Width (S)
11.1
mm
(Equiv. 0.437 in.) - Screw Size 1/4-20 x 1/4
- Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K15
- NoCor SC-0437-ZC
- Small Parts SC-7
- SC0437ZC
- SC7
