GHK1111-1111-102 - Datasheet
ExaktKey
Category Information

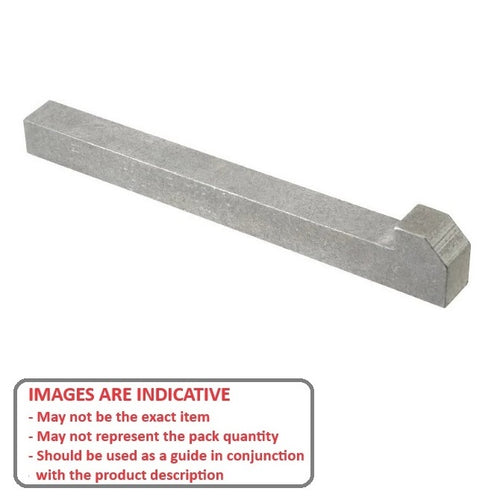

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Key Height (H1)
:
11.113
mm
(Equiv. 0.438 in.) - Width (W)
11.113
mm
(Equiv. 0.438 in.) - Length (L)
101.6
mm
(Equiv. 4 in.) - Head Height (h2) Approx. 17.5 mm
- Approx (B) 10.16
- Approx (H3) 11.91
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 12.70 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 98471A192
- NoCor GIB-0437-4000
- GIB04374000
