Miniature Bearings Australia
BL-01111-S440-G16 - Datasheet
MBA
Category Information

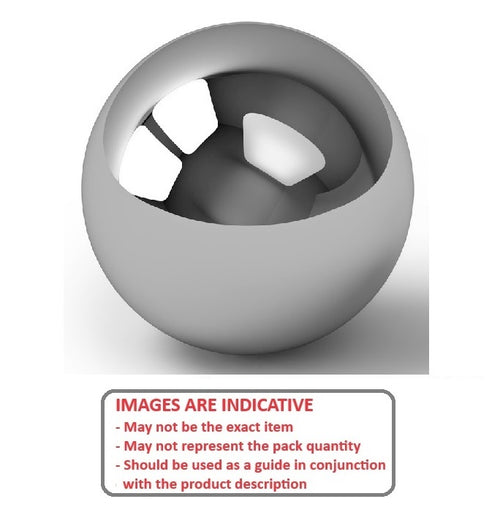

Balls - Metallic - Stainless Steel - 400 Grade400 Grade Stainless Steel Metallic Balls. Hardness: Rockwell C: 55-60. Includes 420 and 440C grades
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
- AISI440C Stainless Steel.
Product Data
- Diameter (D)
:
11.113
mm
+/- 0.00254
(Equiv. 0.438 in.) - Material 440C Stainless
- Precision ISO 3290 Grade 16
- Hardness 55-60 Rockwell C
- Properties Commonly used in precision bearings. Corrosion resistant.
- Colour Silver
- Specific Gravity 7.833
- Ovality +/-0.00040
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- Mil-Spec MS19060-4820
- MS190604820
