REM-111-R-CN - Datasheet
MBA
Category Information

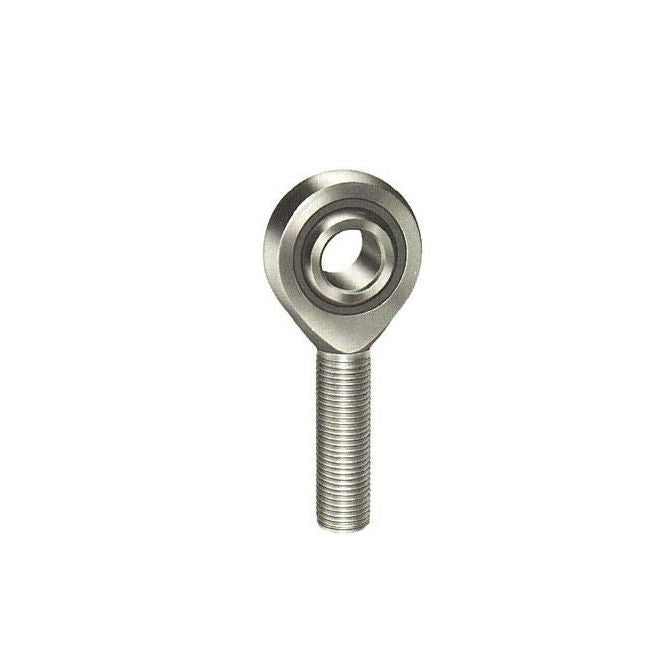

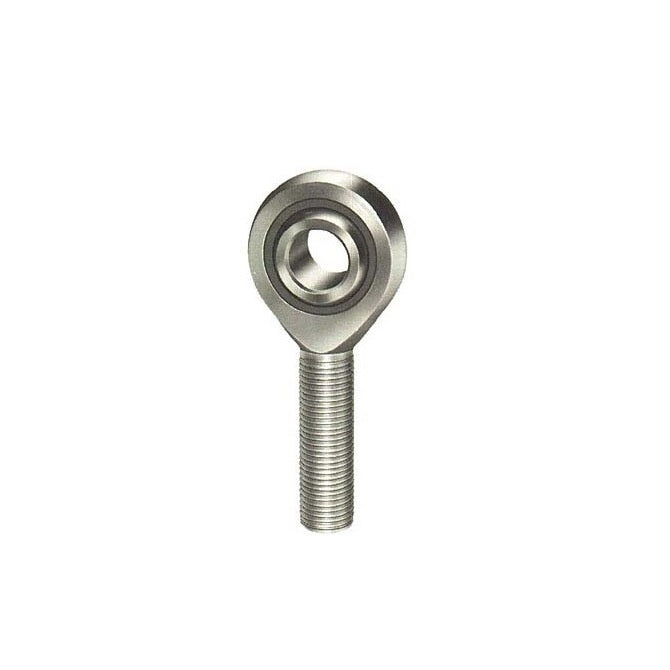

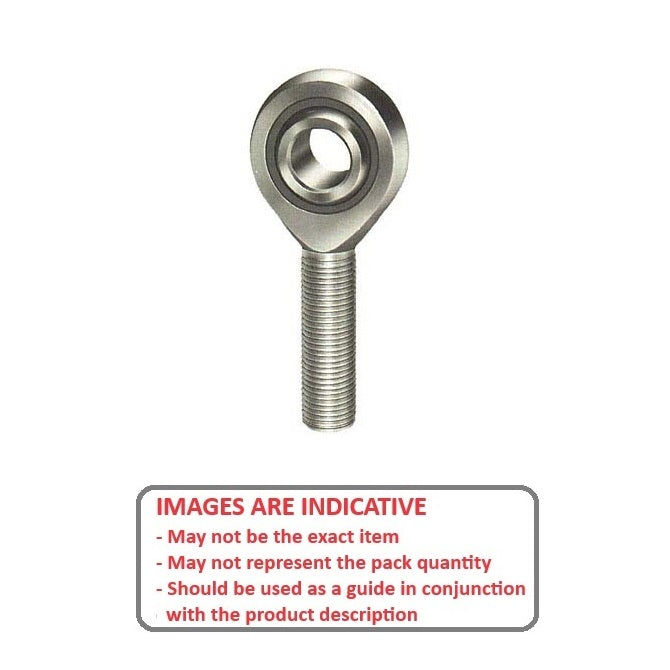

Rod Ends - Male - Steel - Nylon RacewayNylon Raceway Steel Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
11.113
mm
(Equiv. 0.438 in.) - Overall Length (L)
68.25
mm
(Equiv. 2.687 in.) - Thread Size 7/16-20 UNF Right
- Min. Thread Length (l2) 33.33 mm
- Head Width (W) 11.10 mm
- Eye Width (W1) 14.28 mm
- Head Diameter (D) 28.58 mm
- Centre Height (l1) 53.98 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPM-7
- SPM7
