REF-111-R-CN - Datasheet
MBA
Category Information

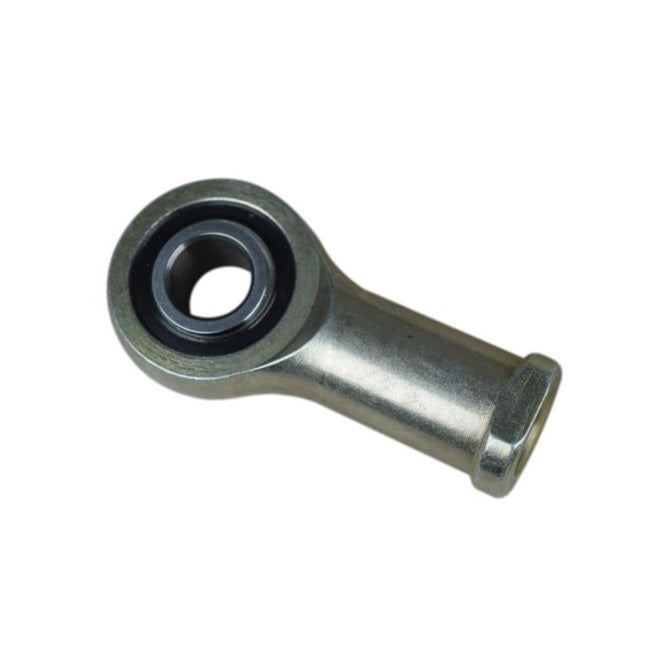

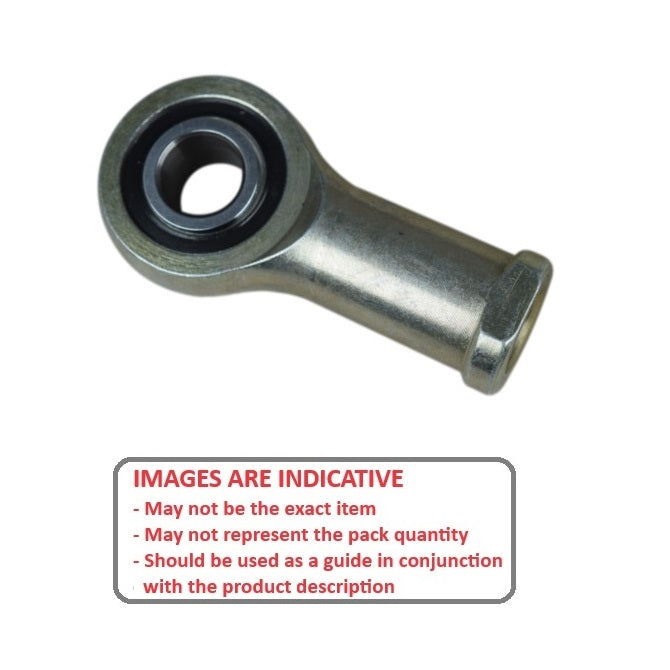

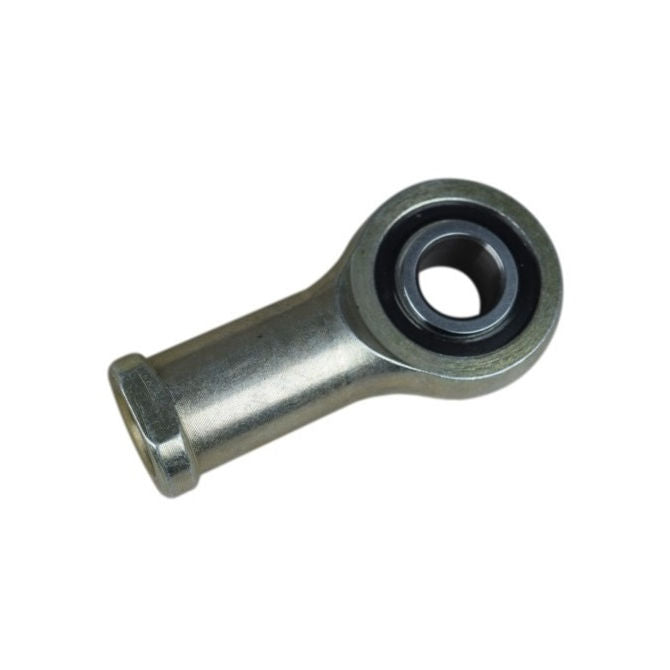

Rod Ends - Female - Steel - Plain - Nylon RacewayNylon Raceway Plain Steel Female Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.

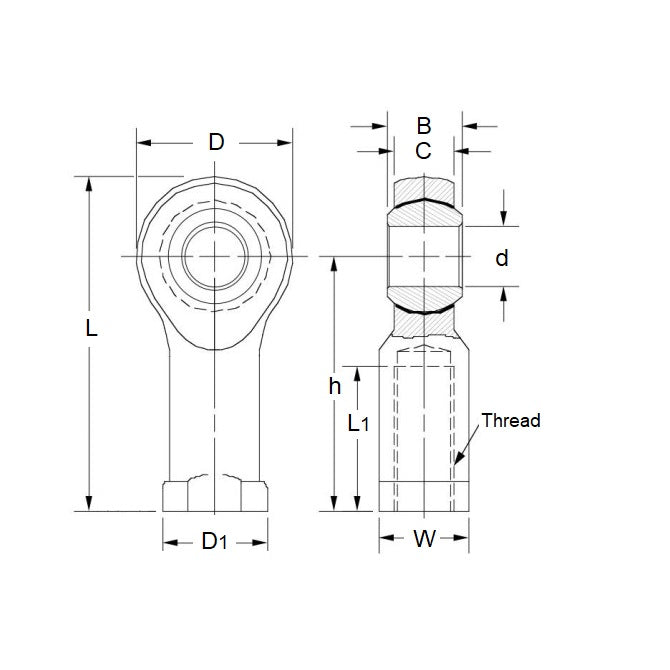

Product Data
- Eye Size (d1)
:
11.113
mm
(Equiv. 0.438 in.) - Overall Length (L)
60.33
mm
(Equiv. 2.375 in.) - Thread Size 7/16-20 UNF Right
- Thread Length (l2) 26.19 mm
- Head Width (W) 11.10 mm
- Eye Width (W1) 14.28 mm
- Head Diameter (D) 28.58 mm
- Centre Height (l1) 46.03 mm
- Body Width/Flange Width(W2/D3) 15.88 / 19.05 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPF-7
- SPF7
