SLH-1111-2064-06668-H - Datasheet
MBA
Category Information

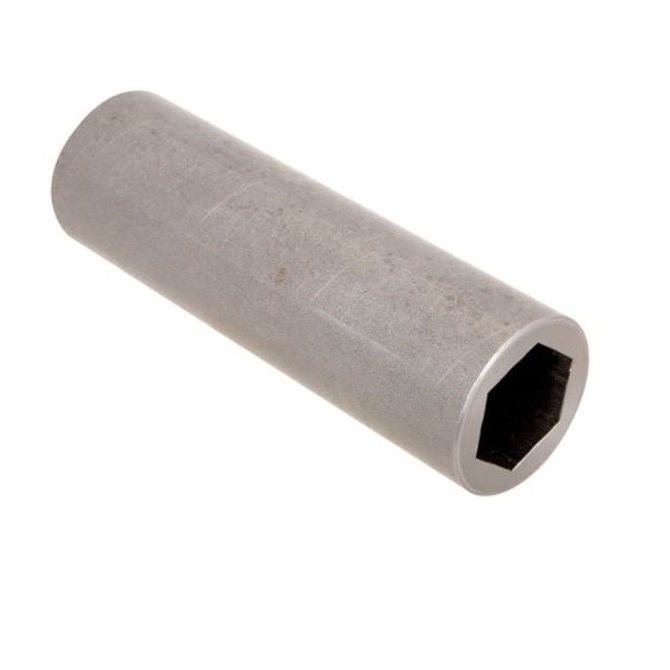

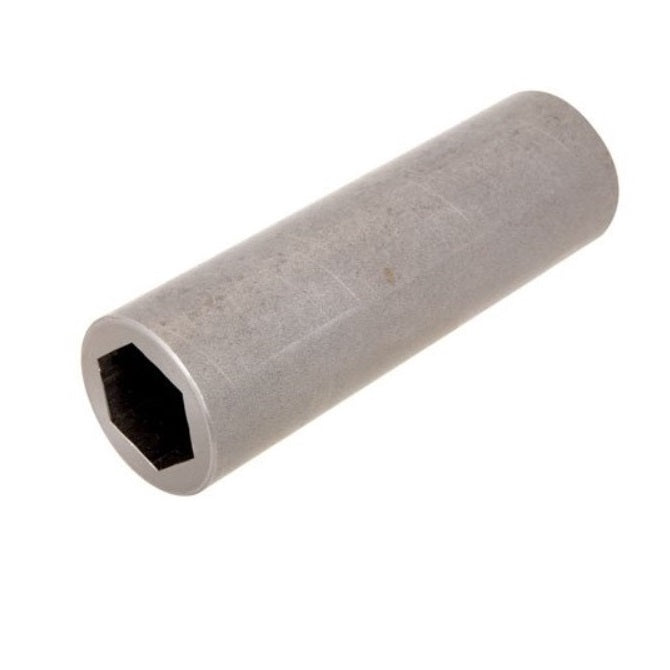

Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Pre hardened to Rockwell 23-30C. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Round OD with with a uniform hex hole broached from one end to the other.
Product Data
- Nominal Hex Size
:
11.111
mm
(Equiv. 0.437 in.) - Outside Diameter (OD)
20.638
mm
(Equiv. 0.813 in.) - Length (L)
66.675
mm
(Equiv. 2.625 in.) - Actual Hex Size (H) 11.176 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS112
- HHS-112
