Miniature Bearings Australia
ECL-0090-0100-S15 - Datasheet
MBA
Category Information

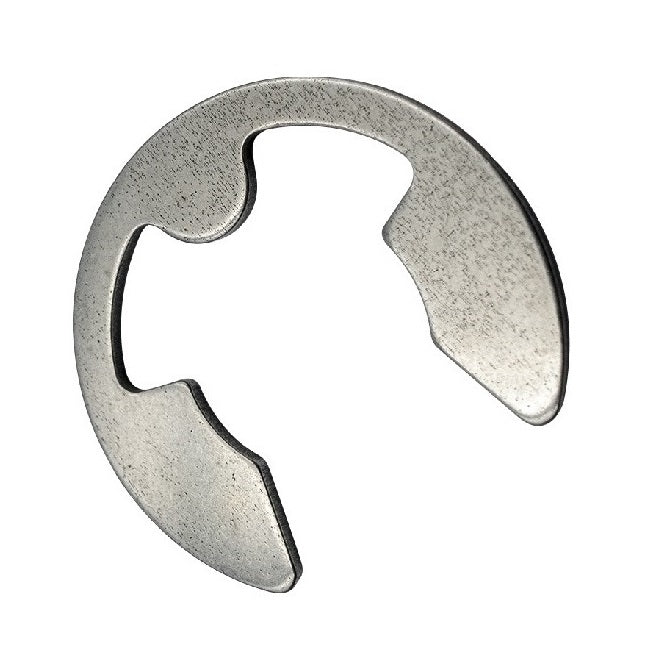

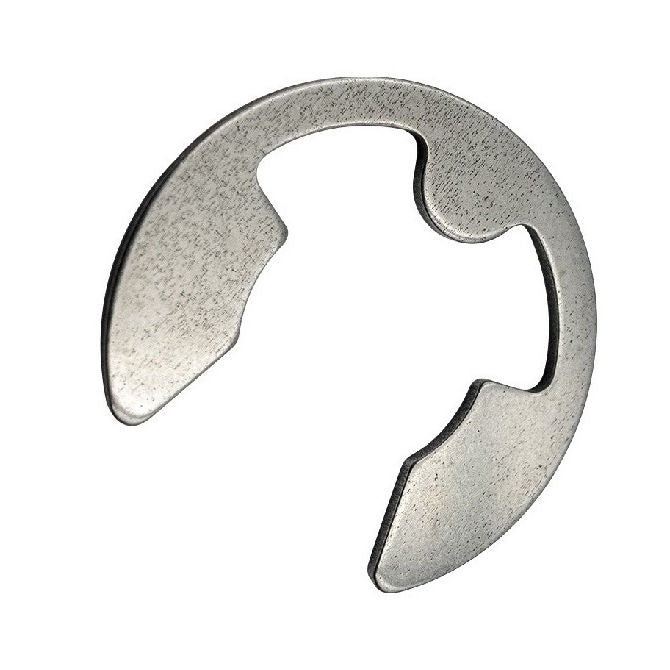

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
10.00
mm
+ 4.00 / - 0.00
(Equiv. 0.394 in.) - Groove Dia. (Dg)
9.00
mm
+ 0.00 / - 0.09
(Equiv. 0.354 in.) - Clip Thickness (T)
1.10
mm
+/ - 0.03
(Equiv. 0.043 in.) - Clip OD Loose (D1) 18.20 mm
- Groove Width (W) 1.15 mm
- Maximum Rec. Shaft Dia (S) 14.00
- Clip OD in groove (C1) 18.80 mm
- Loose Clip ID (A) 7.63 mm
- Min. Extension (n) 2.00
- Standard DIN6799
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 98317A231
- NoCor DE-090-SS
- 15000090KSF
- 1500-0090KSF
- DE090SS
- D1500-0090KSF
- D15000090KSF
