CCE-01000-CZ - Datasheet
MBA
Category Information

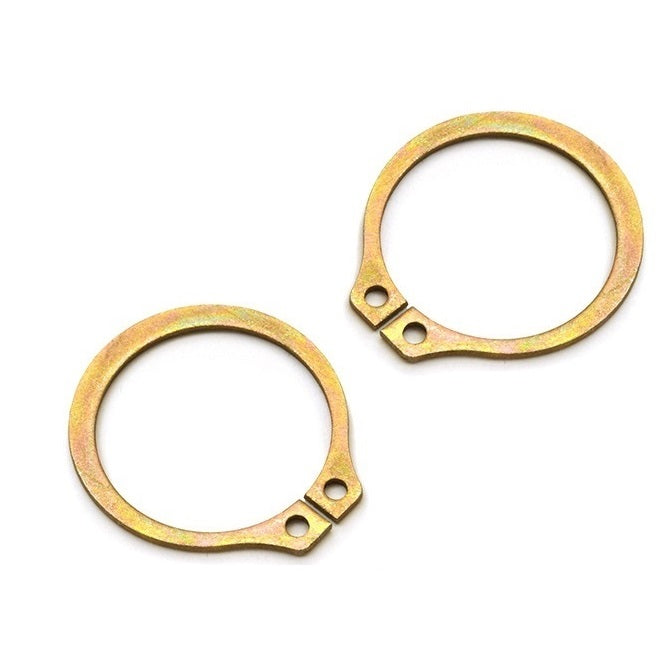

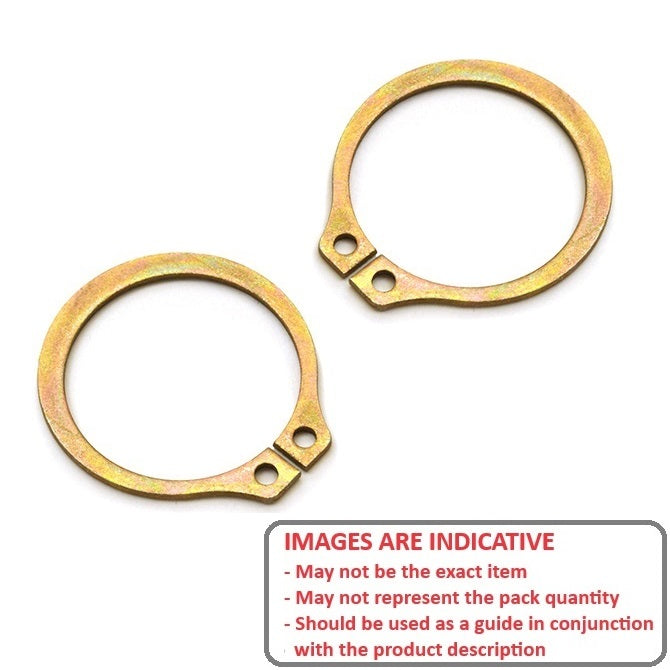

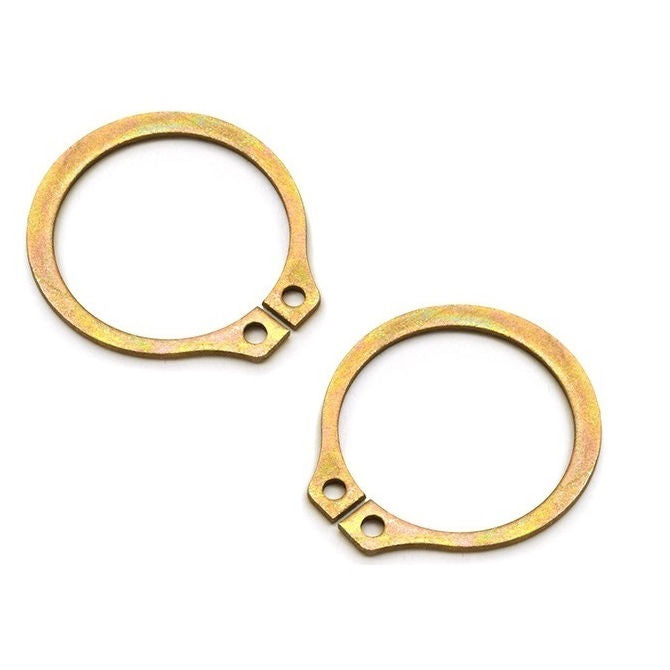

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
10.00
mm
(Equiv. 0.394 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.) - Groove Dia. (Dg)
9.60
mm
+ 0.00 / - 0.06
(Equiv. 0.378 in.) - Approx. Loose Circlip ID (A) 9.30 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 17.00 mm
- Clearance in Groove (C1) 16.20 mm
- Min. Lug Diameter (h) 1.50 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-010-ZC
- 90154A238
- Seeger A-010-ZC
- Seeger A10X1Z
- Bossard BN818-010-ZC
- Waldes D1400-010-ZC
- NoCor DSH-010-ZC
- Rotor Clip DSH-010-ZC
- DSH010ZC
- D1400010ZC
- A010ZC
- 471010ZC
- BN818010ZC
