BTU0010-010-P-Z-SL - Datasheet

MBA

Category Information

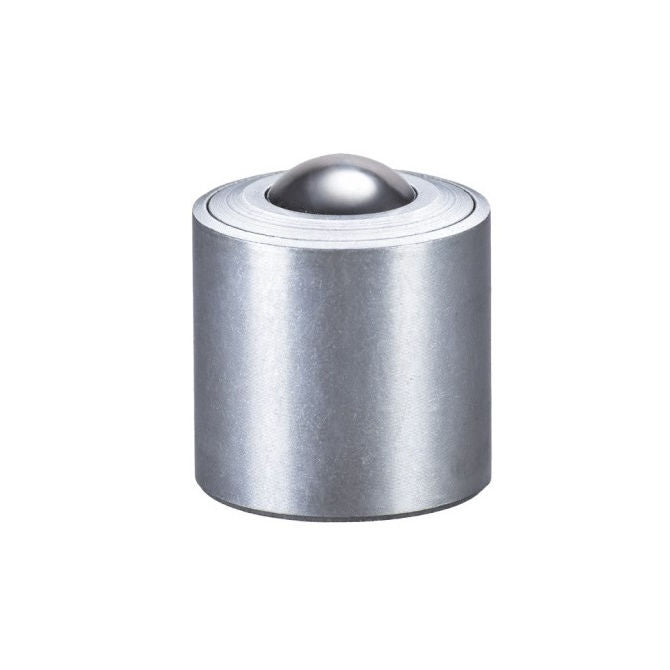

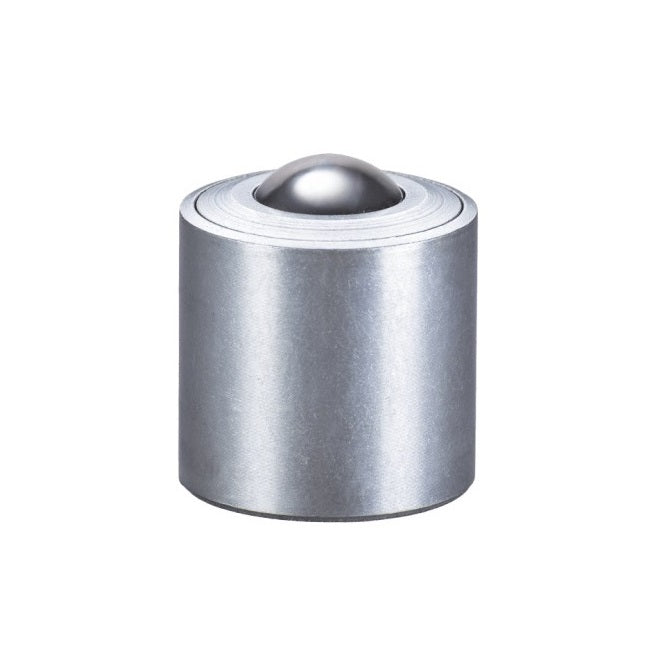

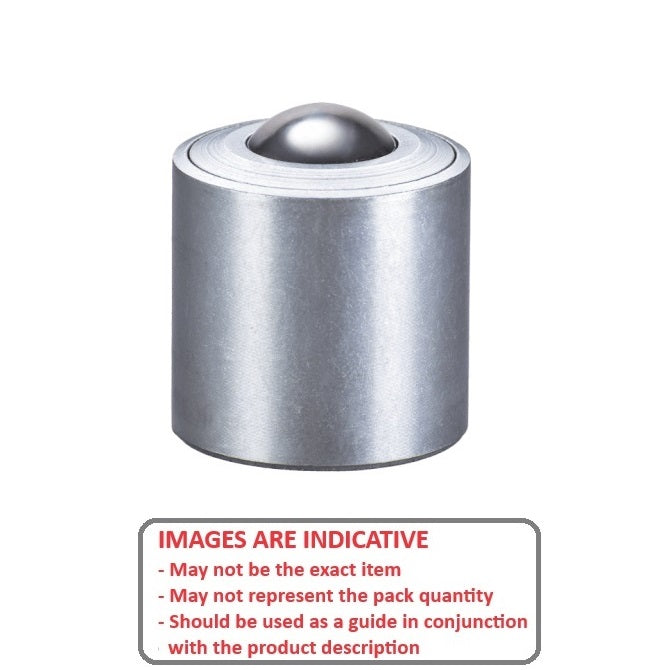

Ball Transfer Units - Spring Loaded - Unflanged - Zinc Plated

Zinc Plated Unflanged Spring Loaded Ball Transfer Units. This is the main category in this series

  • Single ball bearing units for conveyor systems
  • Applications includes guillotines, presses, moulding machines, base of machines for easy handling, press brakes and shock loading.
  • Max Load is applicable when used as a transfer, not as a castor
  • Case: Zinc plated Mild Steel, Ball: Carbon Steel 60-66HRC

Product Data

  • Supp. Load : 10 kg

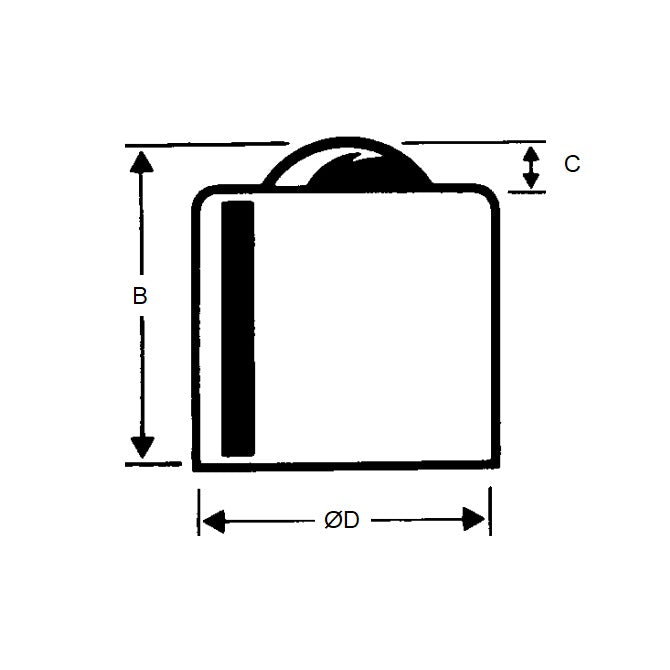

  • Height from Base (B) 9.5 mm
    (Equiv. 0.374 in.)
  • Body Diameter (D) 36.5 mm
    (Equiv. 1.437 in.)
  • Overall Height 95.3 mm
  • Ball Diameter 19.1 mm
  • Body Height 10.4 mm
  • Type C
  • Material Steel Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTSU-19C
    • BTSU19C
    • SKF3009
    • SKF-3009
