0T-0100-0085-0300-AL - Datasheet
MBA
Category Information

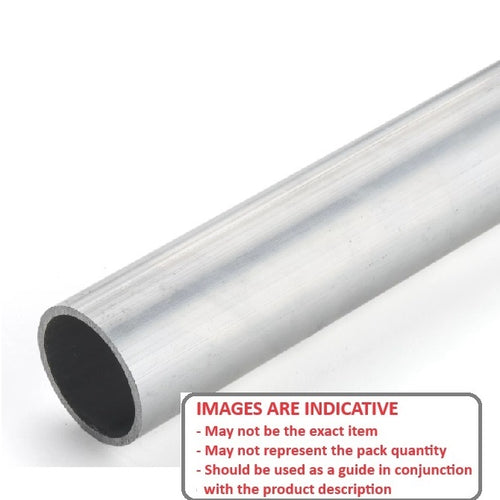

Tube - Round - AluminiumAluminium Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
- Many sizes fit neatly into larger sizes to allow for telescoping size applications. Some items may be available in longer or shorter lengths. E-mail sales@smallparts.com.au with enquiries.
Product Data
- OD (D)
:
10.00
mm
+/- 0.076
(Equiv. 0.394 in.) - ID (d)
8.48
mm
+/- 0.152
(Equiv. 0.334 in.) - Length (L)
300
mm
+/- 1.0
(Equiv. 11.811 in.) - Material Aluminium Alloy 3003 H14
Product Compliance and Data
Additional Resources
Cross References
- KSE KS9812
