BTU0010-006-TS-BA - Datasheet
MBA
Category Information

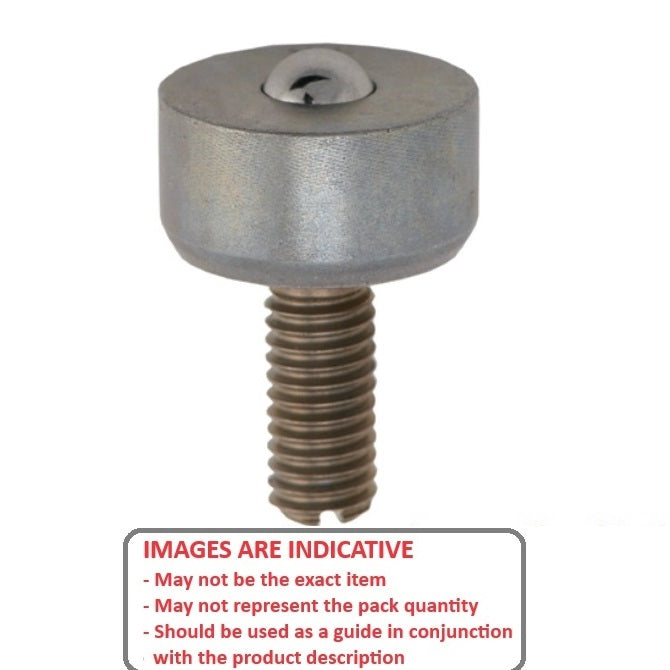

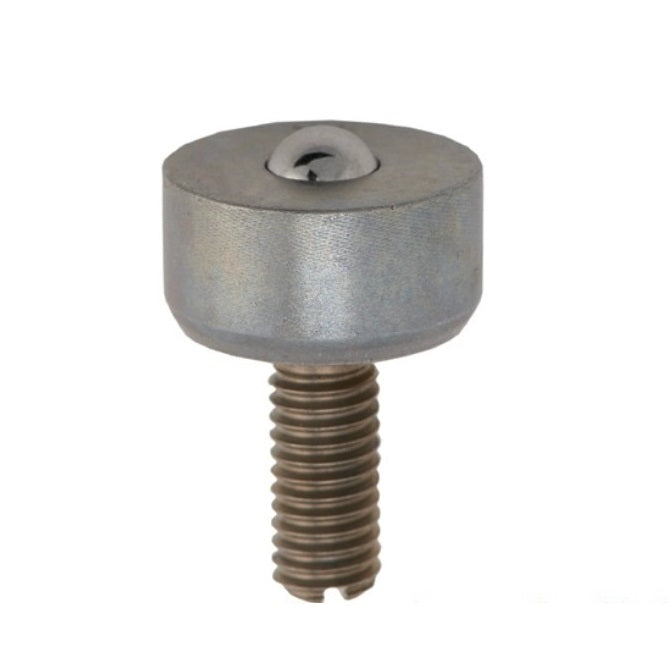

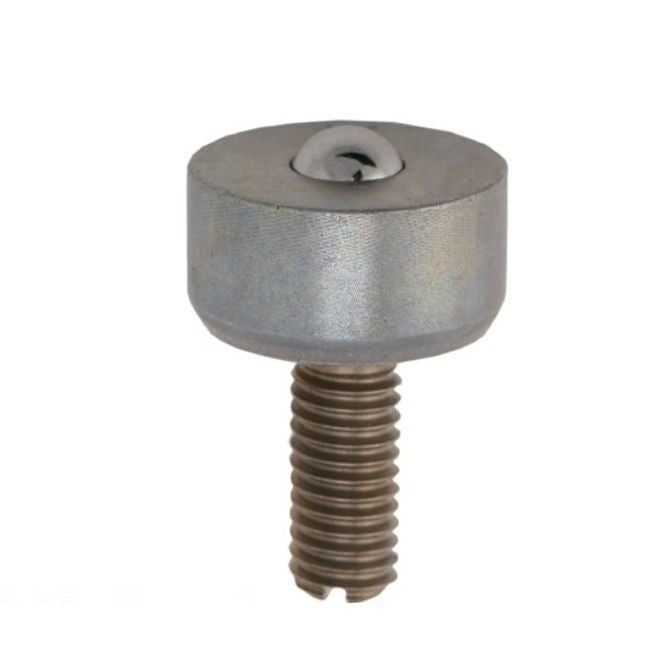

Ball Transfer Units - Screw Stem - Brass and AluminiumBrass and Aluminium Screw Stem Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Max Load : 10 kg

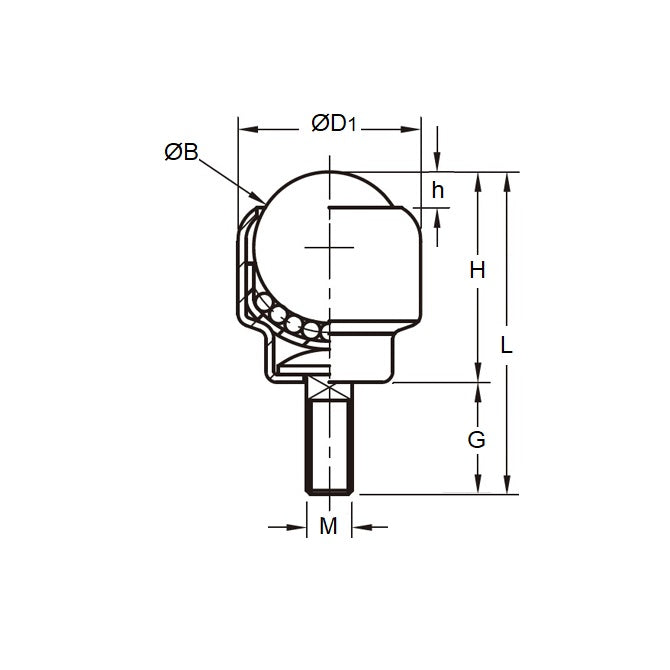

- Height from Base (B)
6
mm
(Equiv. 0.236 in.) - Body Diameter (D)
8
mm
(Equiv. 0.315 in.) - Overall Height (L) 8.5 mm
- Ball Diameter 4.8 mm
- Body Height (Bh) 6.0 mm
- Thread M2
- Stud Length (Sl) 2.5 mm
- 2 Type
- Material Stainless Steel AISI 440C and Aluminium
Product Compliance and Data
Additional Resources
Cross References
- ISB IS-05SNM
- Origin Z10-138
- Z10138
- IS05SNM
