PLIT-100-200-150-83-KPU-S3F - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless - Standard

Standard Stainless No Collar Indexing Pull Knob Plungers. This is the main category in this series

    Product Data

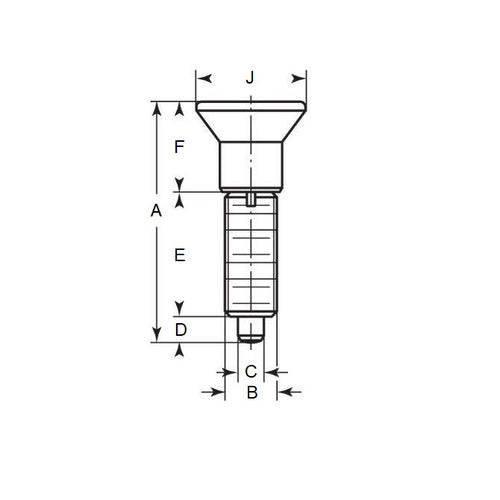

    • Thread (B) : M20 Extra Fine (20x1.5mm)
    • Overall Length (A) 83.0 mm
      (Equiv. 3.268 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.4 N
    • Tip Diameter (C) 10.0 mm
    • Tip Length (D) 10.0 mm
    • Hex Height (F) 33.0
    • Knob Diameter (J) 33.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP658
      • KBP-658
      View full details

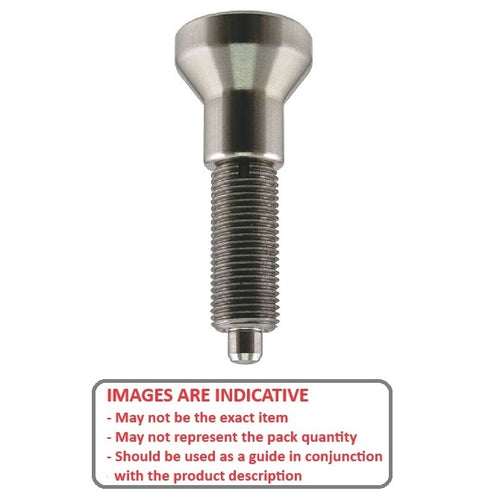

      PLIT-100-200-150-83-KPU-S3FDiagramPLIT-100-200-150-83-KPU-S3FImage
