PLIT-100-200-150-74-KPUN-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut

With Nut Stainless and Plastic No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M20 Extra Fine (20x1.5mm)
    • Overall Length (A) 74.0 mm
      (Equiv. 2.913 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.4 N
    • Tip Diameter (C) 10.0 mm
    • Tip Length (D) 10.0 mm
    • Hex Height (F) 24.0 mm
    • Knob Diameter (J) 33.0 mm
    • Nut Size (L) 30.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP651
      • KBP-651
      View full details

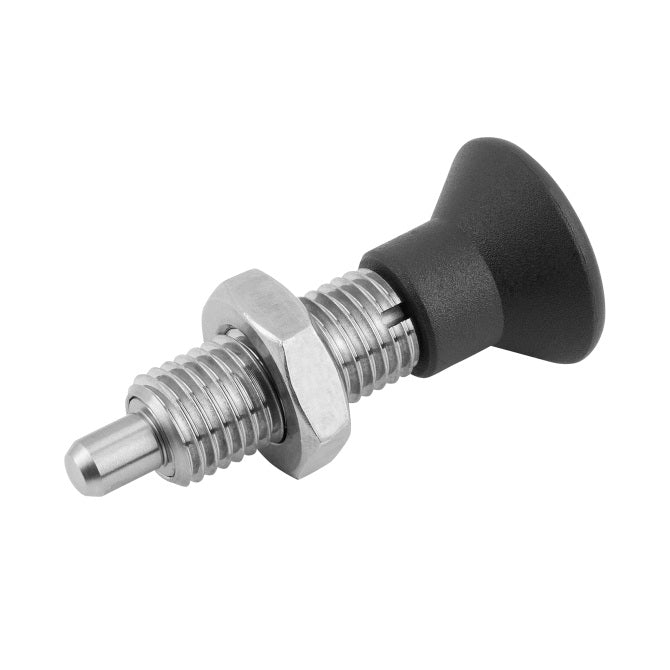

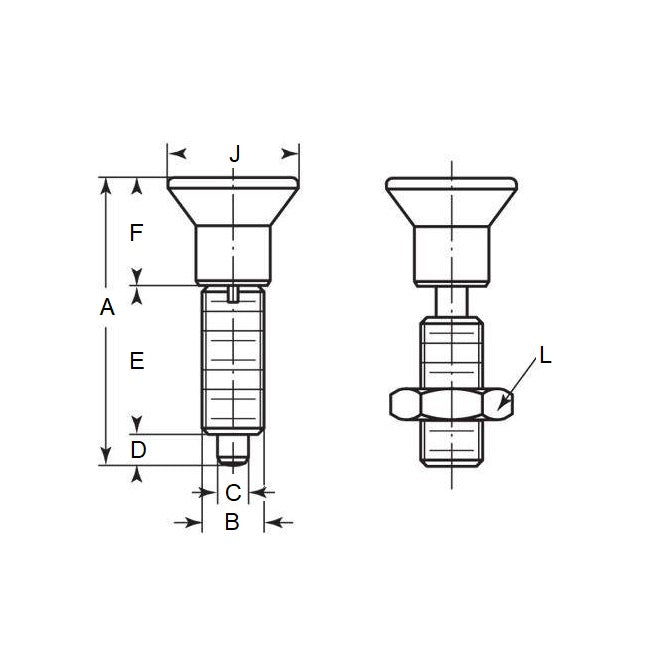

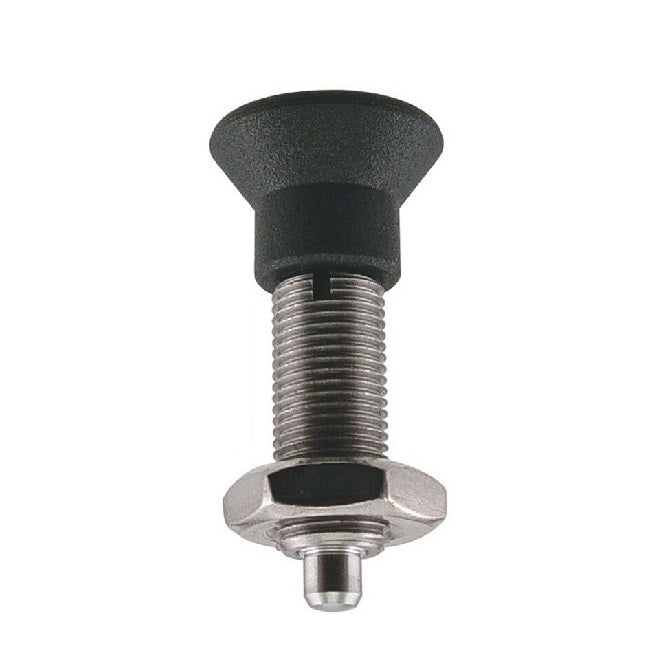

      PLIT-100-200-150-74-KPUN-S3DiagramPLIT-100-200-150-74-KPUN-S3Image
