PLIT-100-200-150-74-KPU-C - Datasheet

MBA

Category Information

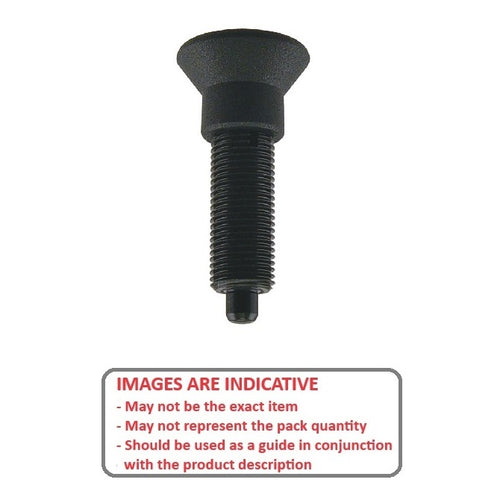

Plungers - Indexing Pull Knob - No Collar - Steel - Standard

Standard Steel No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

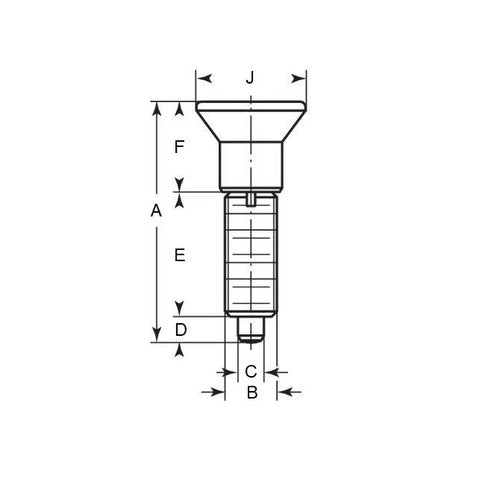

    • Thread (B) : M20 Extra Fine (20x1.5mm)
    • Overall Length (A) 74.0 mm
      (Equiv. 2.913 in.)
    • Initial End Force 6.8 N
    • Final End Force 15.4 N
    • Tip Diameter (C) 10.0 mm
    • Tip Length (D) 10.0 mm
    • Hex Height (F) 24.0
    • Knob Diameter (J) 33.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP630
      • KBP-630
