DP100-050-316-2 - Datasheet
NoCor
Category Information

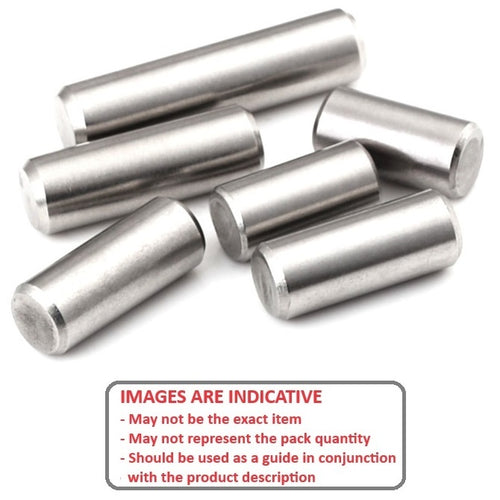

Pins - Dowel - Standard - Chamfered Ends - 316 Stainless316 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 316 Grade - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
10.000
mm
+ 0.007 / + 0.018
(Equiv. 0.394 in.) - Length (L)
50.00
mm
+/- 0.600
(Equiv. 1.969 in.) - Approx. Overall Length
50.00
mm
+/ - 0.600
(Equiv. 1.969 in.) - Type 2 (Chamfer Both Ends)
- Chamfer 2.00 x 15 Deg
- Standard Based on ISO 2338
- Material Stainless Steel 316 (Similar to A4, 18-10)
