RP100-0500-4 - Datasheet
MBA
Category Information

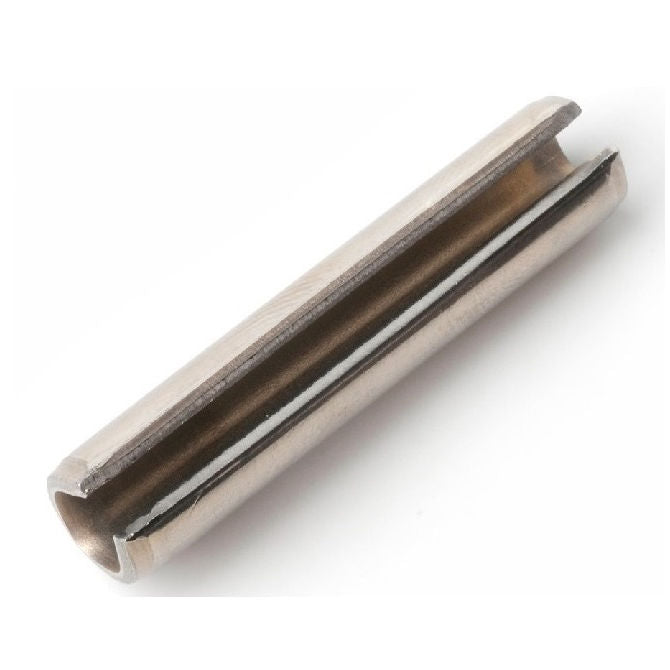

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D)
:
10.00
mm
(Equiv. 0.394 in.) - Length (L)
50.00
mm
(Equiv. 1.969 in.) - Free Diameter
11.00
mm
(Equiv. 0.433 in.) - Thickness (S) 2.00 mm
- Chamfer Length (cL) 2.00-2.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A927
- NoCor SPM3P-100-050-I
- NoCor SPMS-100-050-304SS
- SRP10-50
- SPMS100050304SS
- SRP1050
- SPM3P100050I
