PSP-100-035H-S2 - Datasheet
MBA
Category Information

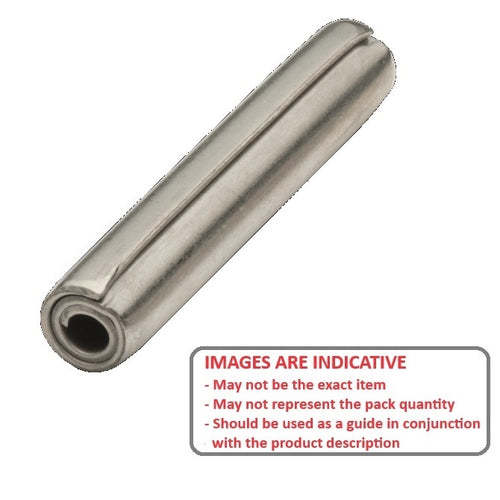

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
10.00
mm
(Equiv. 0.394 in.) - Length
35.00
mm
+/- 0.50
(Equiv. 1.378 in.) - Drill Size
10.00 - 10.15
mm
(Equiv. 0.394 in.) - Loose Diameter 10.30 - 10.65 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
