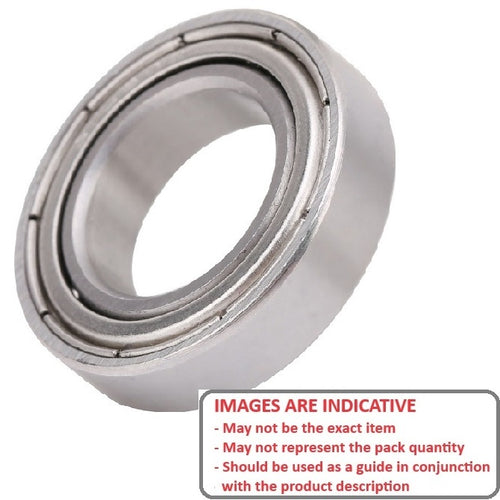

AISI304 Stainless Precision Unflanged Single Row Ball Bearings. Corrosion and Heat resistance - Non Magnetic - Non Hardenable. Quality Japanese manufacture.

• Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
• Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
• They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
• Tolerances differ from standard bearing types - see below. Due to the tolerance range it is recommended that each actual bearing is measured to calculate fits.
• ID +0.05 / -0 mm , OD +0 / -0.03 mm up to 10mm bore, Width +0/- 0.12 mm.
• Mid range speed and load between 304 stainless and 440C stainless.
• Rubber seals are Nitrile but fluorine rubber may be available on request
• Cages, balls, races and shields from AISI 304 Stainless Steel.
