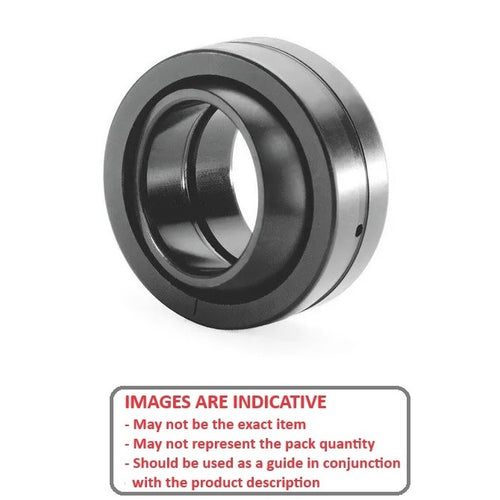

GE-01000-02600-ST - Datasheet
MBA
Category Information
Bushings - Spherical - Steel - No Oil HoleNo Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.
- Compensates for axial loads and misalignment.
Product Data
- Bore (d1)
:
10.000
mm
(Equiv. 0.394 in.) - OD (d2)
26.000
mm
(Equiv. 1.024 in.) - Width (B)
14.000
mm
(Equiv. 0.551 in.) - Outer Width (C) 10.50 mm
- Dynamic Load Capacity 1000 kgf
- Static Load Capacity 2400 kgf
- Features No Wiper Seals / No Oil Hole
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 2995K33
- IKO PB10
- Nachi PB-10
