6900-ZZS-N-SPEC-ECO - Datasheet
ECO
Category Information

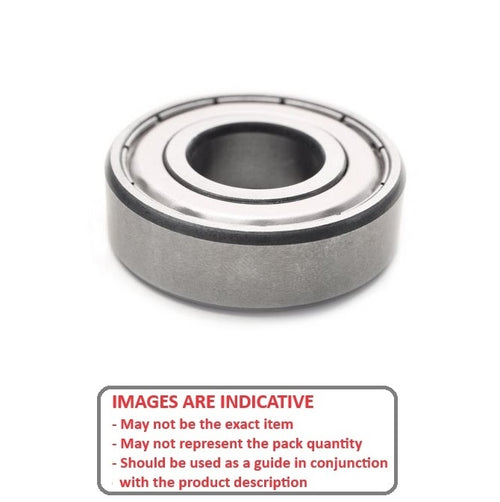

Bearings - Single Row Ball - with Snap Ring Groovewith Snap Ring Groove Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring Groove on the OD. No Snap Ring.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring groove.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

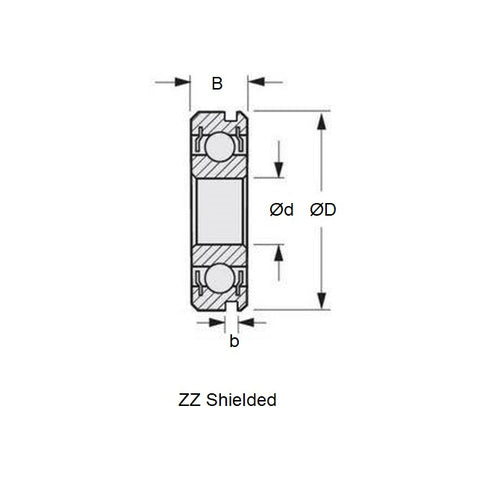

- ID (d)
:
10.000
mm
(Equiv. 0.394 in.) - OD (D)
22.000
mm
(Equiv. 0.866 in.) - Width (B)
6.000
mm
(Equiv. 0.236 in.) - Groove Width (b) 0.800 (Narrow Non Standard) mm
- Closure Type ZZS
- Bearing Type Radial with Snap Ring Groove
- Max. Dist. To Groove Edge 1.050 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6900
- Limiting Speed 32300
- Cage Type Standard
- Static Load Rating KGf 123.5
- Dynamic Load Rating KGf 261.2
- Radii 0.30 mm
- Inner Shoulder (UI) 13.20mm
- Outer Shoulder (UO) 19.37 mm
- Number of Balls 9
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
