COL-01000-020-10-CZ - Datasheet
MBA
Category Information

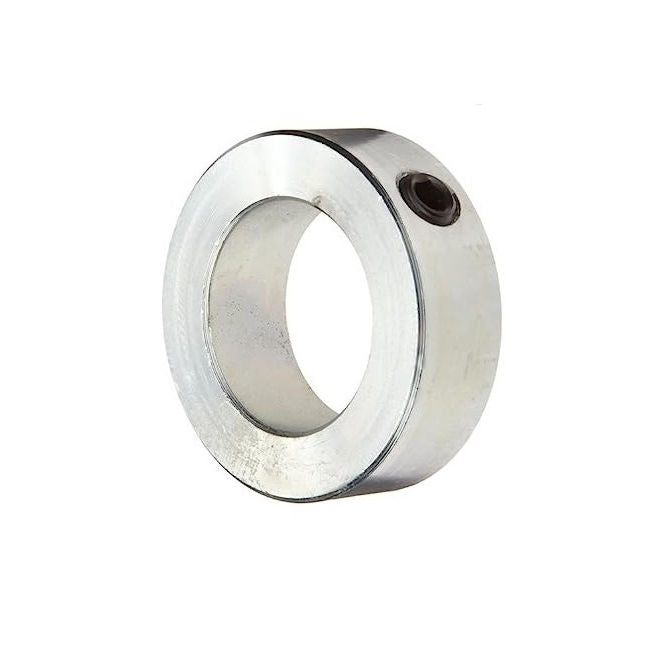

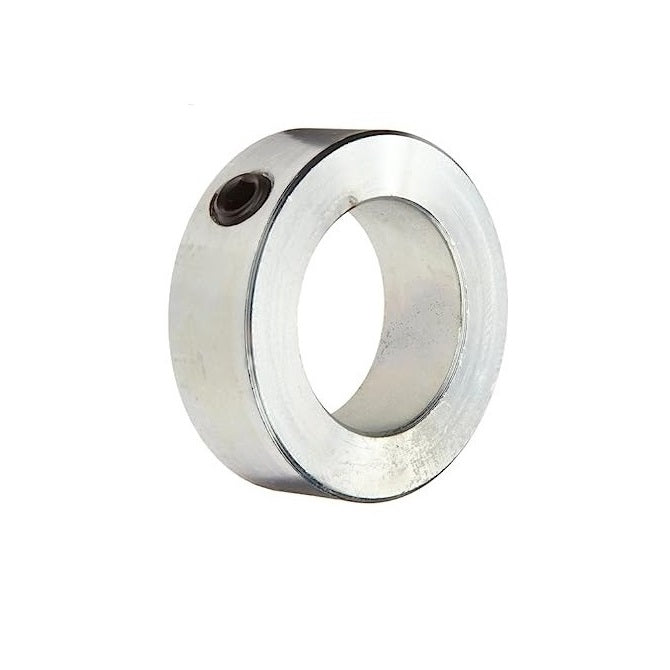

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
10.000
mm
+ 0.027 / - 0.000
(Equiv. 0.394 in.) - Outside Diameter (D)
20.00
mm
(Equiv. 0.787 in.) - Overall Width (S)
10.0
mm
(Equiv. 0.394 in.) - Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SCM-010-ZC
- A7C2M120100
- SCM010ZC
