PLIT-100-191C-80-K-C - Datasheet
MBA
Category Information

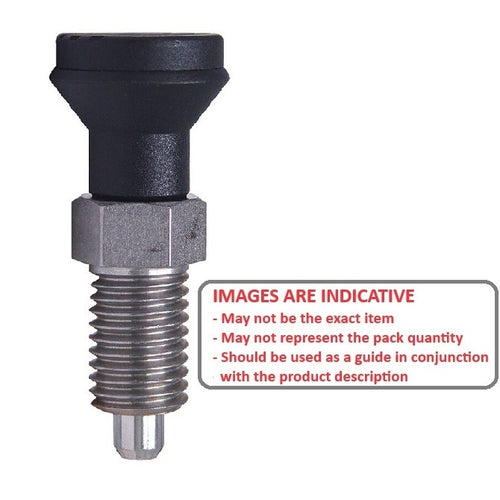

Plungers - Indexing Pull Knob - Non Locking - SteelSteel Non Locking Indexing Pull Knob Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
- Body and pin are steel with black oxide finish.
Product Data
- Thread (B) : 3/4-10 UNC (19.05mm)
- Overall Length (A)
80.0
mm
(Equiv. 3.15 in.) - Initial End Force 2.0 N
- Final End Force 4.1 N
- Tip Diameter (C) 10.0 mm
- Tip Length (D) 9.9 mm
- Nut Size (K) 22.1 mm
- Nut Thickness (J) 11.9 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KaVo GIP-25
- GIP25
