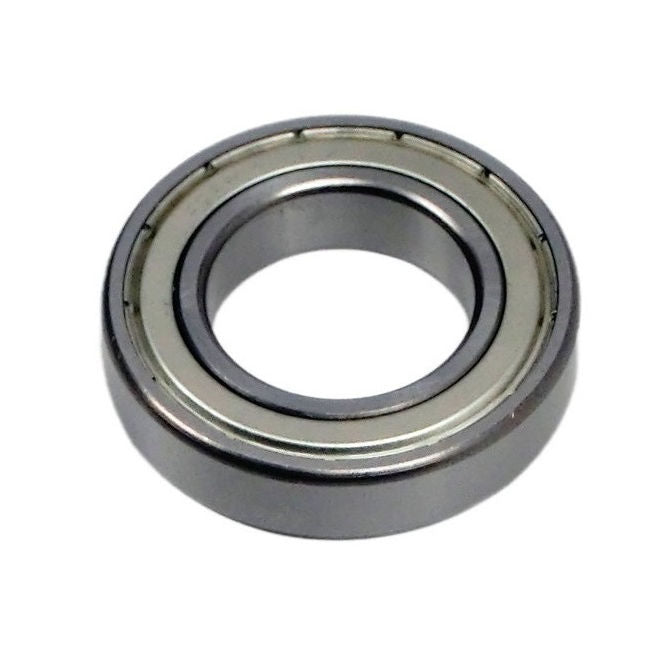

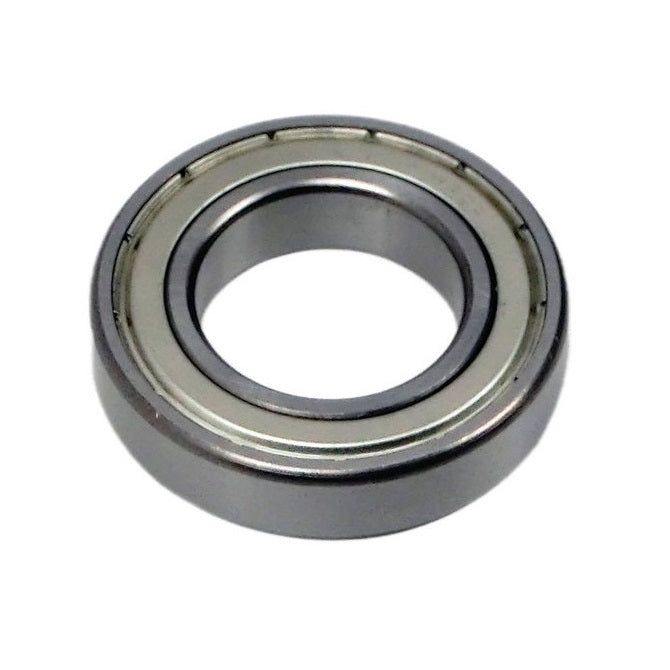

S6800B-ZZ - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Non ISO Width
- ID (d)
:
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - OD (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6800B
- Limiting Speed 37000
- Cage Type Standard
- Static Load Rating KGf 85
- Dynamic Load Rating KGf 175
- Radii 0.30 mm
- Inner Shoulder (UI) 11.80mm
- Outer Shoulder (UO) 17.15 mm
- Number of Balls 10
- Clearance CN (2 to 13)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Academy and MRC - Baja King - Bearing 10-19-7mm
- Bergen Machine - Intrepid 60 - Bearing
- Century - Hawk Sport All - Bearing
- JR - Ergo 30/46 Complete Kit - Bearing
- JR - Ergo 30/46 Upgrade Kit - Bearing
- JR - Vigor CS - Bearing
- Kalt - Cyclone - 10020116 Bearing
- Kalt - Cyclone II - 1020116 Bearing
Cross References
- KALT 10020116
- KALT 1020116
- KaVo 2200085
- SCHICK 5184
- Similar Part 63800H
- SKF 63800H
- SKF 63800H-ZZ
- Stainless 6800BZZ
- Stainless 6800B-ZZ
- GRW S6800-2Z
- GRW SS6800-2Z
- Similar Part W63800
- ADR W63800-ZZ
- ULZ1019X
- W63800ZZ
- SSL1910ZZ
- SS-L1910-ZZ
- SSL1910-ZZ
- S68002Z
- S6800ZZW7
- S6800-ZZW7
- SS6800ZZW7
- SS68002Z
- SS6800-ZZW7
- 63800HZZ
- DDL1910ZZ
- DD-L1910-ZZ
- DDL1910-ZZ
- 6800B Basic Size Ref
