Miniature Bearings Australia
T-0100-0180-G-BR - Datasheet
MBA
Category Information

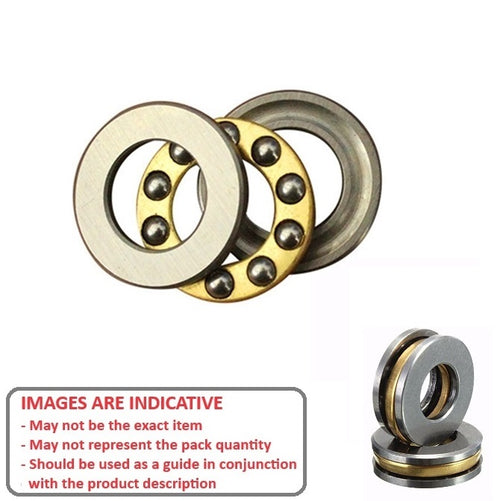

Bearings - Thrust Ball - Grooved - Chrome SteelChrome Steel Grooved Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.
- These bearings are designed so that when one ring turns, the other remains stationary.
- Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
- Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
- Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Product Data

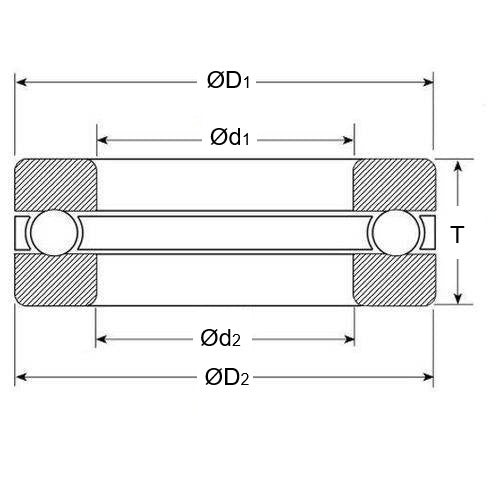

- Shaft Diameter (d1)
:
10.000
mm
(Equiv. 0.394 in.) - OD (D1)
18.000
mm
(Equiv. 0.709 in.) - Thickness (T)
5.500
mm
(Equiv. 0.217 in.) - Bore (d2) 10.200 mm
- OD (D2) 18.000 mm
- Dynamic Load Capacity 193 kgf
- Cage Type Brass
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Century - Predator 60 SE - Thrust Bearing 10-18-5.5mm
- Century - Predator Gas SE Complete - Thrust Bearing 10-18-5.5mm
- Century - Predator Gasser Complete - Thrust Bearing 10-18-5.5mm
- Century - Predator Max 90 - Thrust Bearing 10-18-5.5mm
- GMP - Cobra - 9584 Thrust Bearing
- GMP - Competition - 9584 Thrust Bearing
- GMP - Cricket - 9584 Thrust Bearing
- GMP - Elite Rotor Head - 9584 Thrust Bearing
- GMP - Legend - 9584 Thrust Bearing
- GMP - Rebel - 9584 Thrust Bearing
- GMP - Stork - 9584 Thrust Bearing
Cross References
- ISO F1018M
- ISO F10-18M
