MR1610A-2RB-ECO - Datasheet
ECO
Category Information

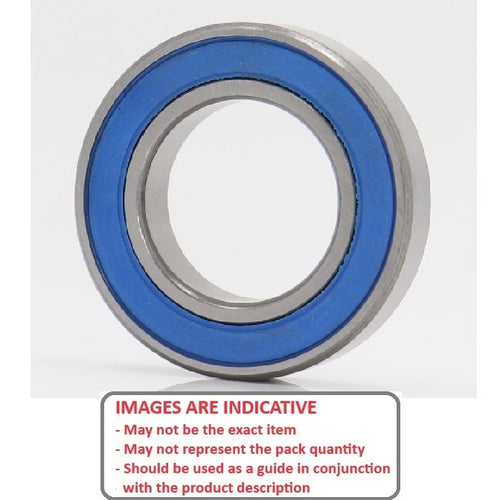

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
10.000
mm
(Equiv. 0.394 in.) - OD (D)
16.000
mm
(Equiv. 0.63 in.) - Width (B)
5.000
mm
(Equiv. 0.197 in.) - Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR1610A
- Limiting Speed 19073.3
- Cage Type Standard
- Static Load Rating KGf 41.8
- Dynamic Load Rating KGf 82.6
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- HPI - E Savage - Bearing 10-16-5mm
- HPI - Savage 25 and RTR - Bearing 10-16-5mm
- HPI - Savage and SavageX - Bearing 10-16-5mm
- HPI - Savage SS - Bearing 10-16-5mm
- HPI - Savage XSS - Bearing 10-16-5mm
- Xray - NT1 - Bearing 10-16-5mm
Cross References
- HPI B032
- Sealed Width A MR1610 / 5
- Sealed MR1610A / 5
- MR1610A Basic Size Ref
