2R-0100-0160-0300-KS3O - Datasheet
ExaktKey
Category Information

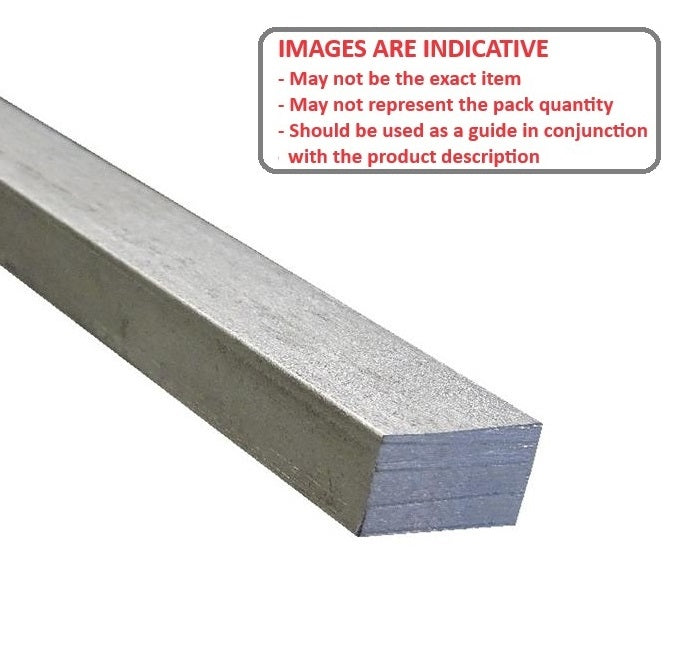

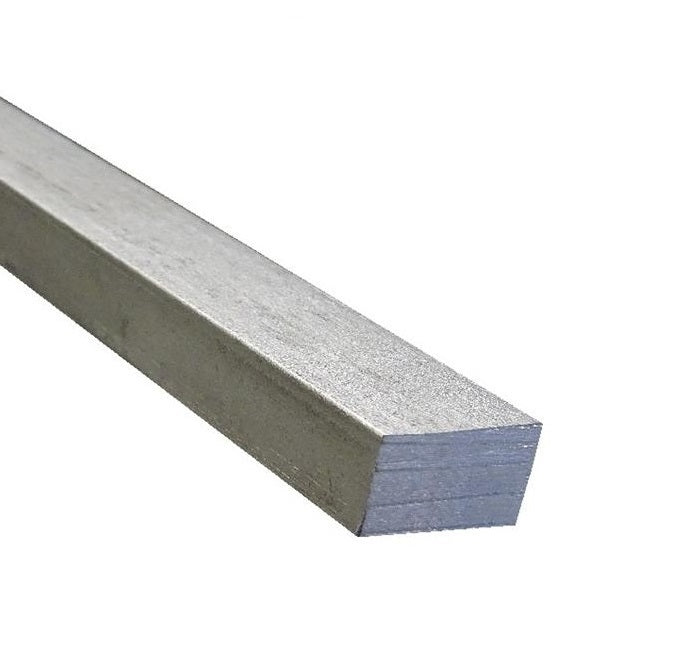

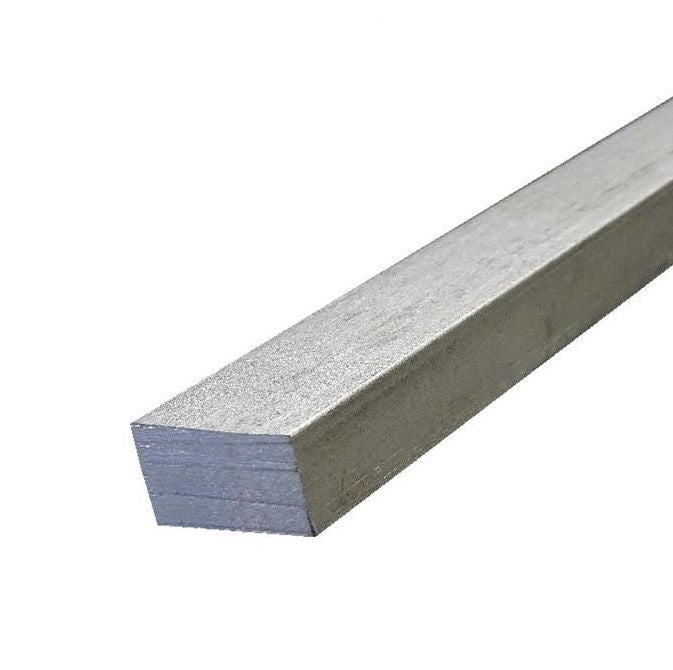

Keysteel Lengths - Rectangular - Stainless SteelStainless Steel Rectangular Keysteel Lengths. 303, 304 and 316 key steel. Rectangular stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Width (s1)
:
10.000
mm
+ 0 / - 0.076
(Equiv. 0.394 in.) - Height (s2)
16.000
mm
+ 0 / - 0.102
(Equiv. 0.63 in.) - Length (L)
300
mm
+ 8.2 / - 3.2
(Equiv. 11.811 in.) - Tolerance Type Oversized
- Blue End Colour Code
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
