OW-0100-0160-0120-RXHP-S440 - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 10.000 mm
    (Equiv. 0.394 in.)
  • OD (D) 16.000 mm
    (Equiv. 0.63 in.)
  • Width (B) 12.000 mm
    (Equiv. 0.472 in.)
  • Overrun Limiting Speed Not Listed RPM
  • Type Drawn Cup Hex Shaped OD
  • Bearings Material Stainless Steel
  • Max Torque Not Listed N.m
  • Cage Material Plastic
  • Material Stainless Steel AISI 440C
Country of Origin: TW

Product Compliance and Data

Additional Resources

    Applications & Uses

    • Fishing Reel Parts
    • Shimano - Calcutta 50-100-150-200-250-251-400-600 - One Way Roller Clutch Bearing
    View full details

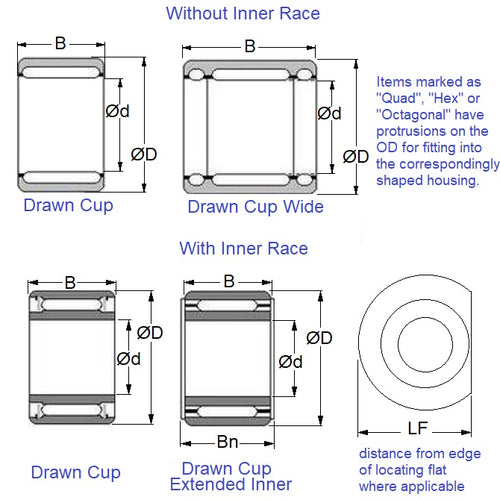

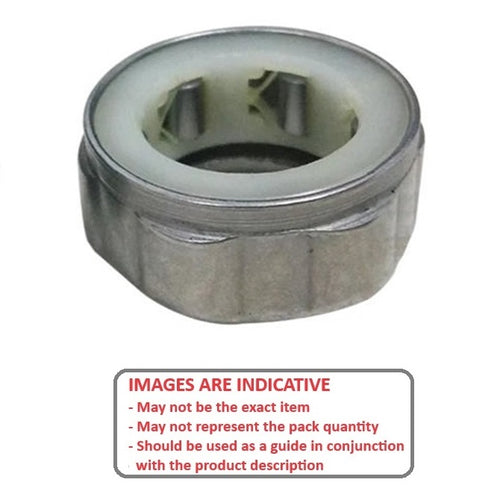

    OW-0100-0160-0120-RXHP-S440DiagramOW-0100-0160-0120-RXHP-S440Image
