W0100-LK-016-010-S-CB - Datasheet
MBA
Category Information

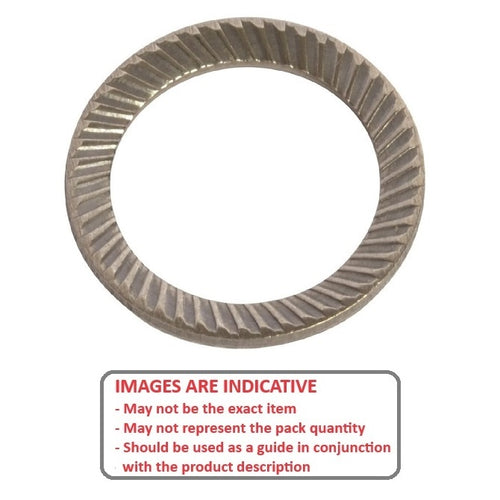

Washers - Serrated - SafetySafety Serrated Washers. Black hardened spring steel selection.
- Serrated washers have teeth or serrations on one or both of its surfaces, allowing them to bite into the mating surfaces of the fastener and materail being fastened.
- This creates a strong grip that helps to prevent loosening due to vibration or rotation. All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

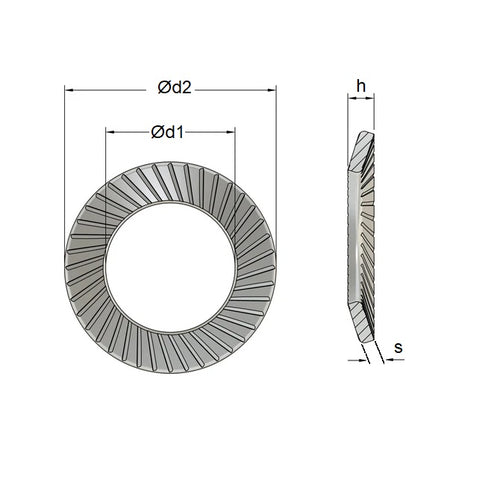

- Nominal Inside Diameter
:
10
mm
(Equiv. 0.394 in.) - OD (d2)
16
mm
(Equiv. 0.63 in.) - Thickness (S)
1.00
mm
(Equiv. 0.039 in.) - Overall Width (h) 1.60 mm
- To Suit Thread Size M10
- Actual ID (Ref) 10.5 mm
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- WMS10
