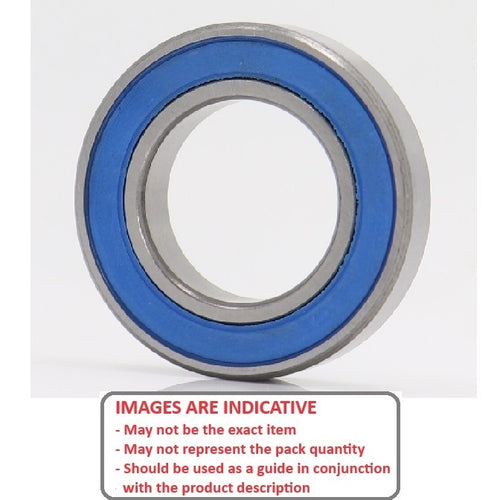

6700A-2RB-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Standard single row radial ball bearings.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • ID (d) : 10.000 mm
    (Equiv. 0.394 in.)
  • O.D. (D) 15.000 mm
    (Equiv. 0.591 in.)
  • Width (B) 4.000 mm
    (Equiv. 0.157 in.)
  • Precision Grade Economy
  • Closure Type 2RB
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6700A
  • Limiting Speed 12825
  • Cage Type Standard
  • Static Load Rating KGf 41.8
  • Dynamic Load Rating KGf 82.6
  • Radii 0.15 mm
  • Inner Shoulder (UI) 11.21mm
  • Outer Shoulder (UO) 14.20 mm
  • Number of Balls 11
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type 2RB
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • Academy® & MRC® - Q-Tee Coupe - Bearing 10-15-4mm
  • Academy® & MRC® - RT-Sport RTR - Bearing 10-15-4mm
  • Academy® & MRC® - STR-4 1/10 Scale - Bearing 10-15-4mm
  • CEN - Fun Factor MT2 - Bearing 10-15-4mm
  • CEN - Magnum NX - Bearing 10-15-4mm
  • CEN - MT2 Truck - Bearing 10-15-4mm
  • CEN - Talon NX - Bearing 10-15-4mm
  • Corally® - Assassin Mid Motor and Stock Option - Bearing 10-15-4mm
  • Corally® - Assassin Modified - Spur Pulley - Bearing 10-15-4mm
  • Corally® - C4 - Bearing 10-15-4mm
  • Corally® - C4.1 - Bearing 10-15-4mm
  • Corally® - Mini Assassin - Bearing 10-15-4mm
  • Corally® - RDX - Bearing 10-15-4mm
  • Corally® - RDX - US Carpet Spec Edition - Bearing 10-15-4mm
  • Duratrax® - Street Force GP RTR - Bearing 10-15-4mm
  • Duratrax® - Street Force GP2 and RTR - Bearing 10-15-4mm
  • FSR - Bullet Electric - Bearing 10-15-4mm
  • FSR - Bullet Modified Losi - Bearing 10-15-4mm
  • GS General Silicone - Vision Pro - Bearing 10-15-4mm
  • Hobao® - Hyper GPX4 - Bearing 10-15-4mm
  • Hot Bodies® - Cyclone - Bearing 10-15-4mm
  • HPI - Baja 5B - Bearing 10-15-4mm
  • HPI - Micro RS4 RTR3 - Bearing 10-15-4mm
  • HPI - MT2 18SS Nitro - Bearing 10-15-4mm
  • HPI - MT2 Nitro - Bearing 10-15-4mm
  • HPI - Nitro Mini RS4 - Bearing 10-15-4mm
  • HPI - Nitro Race RS4 MT - Bearing 10-15-4mm
  • HPI - Nitro RS4 - Bearing 10-15-4mm
  • HPI - Nitro RS4 2 - Bearing 10-15-4mm
  • HPI - Nitro RS4 3 Evo RTR - Bearing 10-15-4mm
  • HPI - Nitro RS4 3 RTR - Bearing 10-15-4mm
  • HPI - Nitro RS4 MT - Bearing 10-15-4mm
  • HPI - Nitro RS4 Sport - Bearing 10-15-4mm
  • HPI - R40 - Bearing 10-15-4mm
  • HPI - R40 With Clutch Bell And Steering - Bearing 10-15-4mm
  • HPI - RS4 - Bearing 10-15-4mm
  • HPI - RS4 Mini - Bearing 10-15-4mm
  • HPI - RS4 Mini Pro - Bearing 10-15-4mm
  • HPI - RS4 MT - Bearing 10-15-4mm
  • HPI - RS4 Nitro RaceR 2 Car - Bearing 10-15-4mm
  • HPI - RS4 Nitro RTRSuper Nitro RAll - Bearing 10-15-4mm
  • HPI - RS4 Nitro Rush - Bearing 10-15-4mm
  • HPI - RS4 Pro - Bearing 10-15-4mm
  • HPI - RS4 Pro 2 With Steering - Bearing 10-15-4mm
  • HPI - RS4 Pro 3 - Bearing 10-15-4mm
  • HPI - RS4 Pro 4 - Bearing 10-15-4mm
  • HPI - RS4 Pro Sport - Bearing 10-15-4mm
  • HPI - RS4 Pro3 Spec - Bearing 10-15-4mm
  • HPI - RS4 RaceR 2 - Bearing 10-15-4mm
  • HPI - RS4 Rally - Bearing 10-15-4mm
  • HPI - RS4 RTR 3 Type SS - Bearing 10-15-4mm
  • HPI - RS4 Sport 2 Complete Kit - Bearing 10-15-4mm
  • HPI - RTR Sprint - Bearing 10-15-4mm
  • HPI - Rush Evo - Bearing 10-15-4mm
  • HPI - Super Nitro RS4 - Bearing 10-15-4mm
  • HPI - Super Nitro RS4 Rally - Bearing 10-15-4mm
  • Kawada® - SV10GT - Bearing 10-15-4mm
  • Kyosho® - EP Ultima® RB Type R - Bearing 10-15-4mm
  • Kyosho® - FW-05 Foam Tyre Special Chassis - Bearing 10-15-4mm
  • Kyosho® - FW-05R - Bearing 10-15-4mm
  • Kyosho® - FW-05R INDIV. Upgrade - Bearing 10-15-4mm
  • Kyosho® - Giga Crusher - Bearing 10-15-4mm
  • Kyosho® - Giga Crusher SF - Bearing 10-15-4mm
  • Kyosho® - Laser ZX5 Complete - Bearing 10-15-4mm
  • Kyosho® - Laser ZX5 Transmission Only - Bearing 10-15-4mm
  • Kyosho® - Mad Armour - Bearing 10-15-4mm
  • Kyosho® - Mad Force RTR - Bearing 10-15-4mm
  • Kyosho® - Ultima® ST GP Evolution Type R - Bearing 10-15-4mm
  • Kyosho® - Ultima® ST Truck - Bearing 10-15-4mm
  • Kyosho® - Ultima® ST Truck With Steering - Bearing 10-15-4mm
  • Kyosho® - V-One RR - Bearing 10-15-4mm
  • Kyosho® - V-One RR Evolution - Bearing 10-15-4mm
  • Kyosho® - V-One RRR - Bearing 10-15-4mm
  • Kyosho® - V-One S 2 Speed - Bearing 10-15-4mm
  • Kyosho® - ZX-5 1/10 - Bearing 10-15-4mm
  • Mugen® - MRX-3 1/8 Scale - Bearing 10-15-4mm
  • Mugen® - MRX-4 - Bearing 10-15-4mm
  • Mugen® - MRX-4R - Bearing 10-15-4mm
  • Mugen® - MTX-2 - Bearing 10-15-4mm
  • Mugen® - MTX-2 4-WD - Bearing 10-15-4mm
  • Mugen® - MTX-3 - Bearing 10-15-4mm
  • Mugen® - MTX-3 Prospect - Bearing 10-15-4mm
  • Mugen® - MTX-4 - Bearing 10-15-4mm
  • Mugen® - Prime 12 - Bearing 10-15-4mm
  • NEO - 4WD Sport - Bearing 10-15-4mm
  • NEO - T21 Nitro - Bearing 10-15-4mm
  • NEO - T21 Nitro 4WD Pro - Bearing 10-15-4mm
  • Ofna® - CD3 Pro RTR - Bearing 10-15-4mm
  • Ofna® - CD3 Sport RTR - Bearing 10-15-4mm
  • Ofna® - Nitro Mini Colt - Bearing 10-15-4mm
  • Ofna® - Nitro OB4 - Bearing 10-15-4mm
  • Ofna® - Z-10 Nitro - Bearing 10-15-4mm
  • RC Lab® - 7 EVEN 6.0 Electric - Bearing 10-15-4mm
  • RD Logistics - Mongoose - Bearing 10-15-4mm
  • Schumaker® - 21XS - Bearing 10-15-4mm
  • Schumaker® - Axis Touring Car - Bearing 10-15-4mm
  • Schumaker® - Cat 1998 - 2000 - Bearing 10-15-4mm
  • Schumaker® - Cat 2000 - Bearing 10-15-4mm
  • Schumaker® - Cat 2000 SE - Bearing 10-15-4mm
  • Schumaker® - Cat 3000 - Bearing 10-15-4mm
  • Schumaker® - Cat 3000 With Steering - Bearing 10-15-4mm
  • Schumaker® - Cougar 2000 - Bearing 10-15-4mm
  • Schumaker® - Cougar 2000 1995 Team Car - Bearing 10-15-4mm
  • Schumaker® - Fire Blade 2000 - Bearing 10-15-4mm
  • Schumaker® - FireBlade Evo - Bearing 10-15-4mm
  • Schumaker® - Fusion - Bearing 10-15-4mm
  • Schumaker® - Fusion 21 - Bearing 10-15-4mm
  • Schumaker® - Fusion R12 - Bearing 10-15-4mm
  • Schumaker® - Menace 21 - Bearing 10-15-4mm
  • Schumaker® - MI2 - Bearing 10-15-4mm
  • Schumaker® - MI2 EC - Bearing 10-15-4mm
  • Schumaker® - Mission - Bearing 10-15-4mm
  • Schumaker® - Mission With Steering - Bearing 10-15-4mm
  • Schumaker® - Nitro Fusion 21 and RTR - Bearing 10-15-4mm
  • Schumaker® - Nitro Storm 10 - Bearing 10-15-4mm
  • Schumaker® - SST 2000 98 - Bearing 10-15-4mm
  • Schumaker® - SST 2000 99 - Bearing 10-15-4mm
  • Schumaker® - SST 2000 Pro - Bearing 10-15-4mm
  • Schumaker® - SST Axis 2 - Bearing 10-15-4mm
  • Schumaker® - SST Pro Axis - Bearing 10-15-4mm
  • Schumaker® - Storm Truck 2000 - Bearing 10-15-4mm
  • Serpent® - 710 1-10TH Gas Sedan - Bearing 10-15-4mm
  • Serpent® - Freedom T1 - Bearing 10-15-4mm
  • Tamiya® - 415MSX - Bearing 10-15-4mm
  • Tamiya® - 911 GTI 1-8 Gas - Bearing 10-15-4mm
  • Tamiya® - Alfa Romeo - Bearing 10-15-4mm
  • Tamiya® - AMG Merceded C-Class D1 - Bearing 10-15-4mm
  • Tamiya® - AMG Merceded C-Class D2 - Bearing 10-15-4mm
  • Tamiya® - BMW 318 SI - Bearing 10-15-4mm
  • Tamiya® - DJ TRF 414 Pro Module Suspension - Bearing 10-15-4mm
  • Tamiya® - F Pro - Bearing 10-15-4mm
  • Tamiya® - F201 Complete Kit - Bearing 10-15-4mm
  • Tamiya® - F201 Outdrive Only - Bearing 10-15-4mm
  • Tamiya® - Honda Civic FWD - Bearing 10-15-4mm
  • Tamiya® - Honda CRV - Bearing 10-15-4mm
  • Tamiya® - Jacos Mugen - Bearing 10-15-4mm
  • Tamiya® - Jeep Wrangler - Bearing 10-15-4mm
  • Tamiya® - Levin FWD - Bearing 10-15-4mm
  • Tamiya® - Merceded 1/8 Gas - Bearing 10-15-4mm
  • Tamiya® - Merceded CLK - DTM AMG 2002 - Bearing 10-15-4mm
  • Tamiya® - Mitsubishi Pajero - Bearing 10-15-4mm
  • Tamiya® - Mitsubishi XB Pajero - Bearing 10-15-4mm
  • Tamiya® - Mitsubishi XB Pajero Rally SPO - Bearing 10-15-4mm
  • Tamiya® - New Beetle - Bearing 10-15-4mm
  • Tamiya® - New Super Beetle Upgrade - Bearing 10-15-4mm
  • Tamiya® - Nitro Force - Bearing 10-15-4mm
  • Tamiya® - Nitro Thunder NDF-01 - Bearing 10-15-4mm
  • Tamiya® - Nitro Thunder XB RTR - Bearing 10-15-4mm
  • Tamiya® - Opel Calibra - Bearing 10-15-4mm
  • Tamiya® - Porsche Taisin - Bearing 10-15-4mm
  • Tamiya® - Renault Clio Williams - Bearing 10-15-4mm
  • Tamiya® - Supra Grand National - Bearing 10-15-4mm
  • Tamiya® - T-05 Upgrade - Bearing 10-15-4mm
  • Tamiya® - TA-05 - Bearing 10-15-4mm
  • Tamiya® - TAO-3 Series - Bearing 10-15-4mm
  • Tamiya® - TAO4 Complete - Bearing 10-15-4mm
  • Tamiya® - TB Evolution III - Bearing 10-15-4mm
  • Tamiya® - TB Evolution IV 4Evo 4 - Bearing 10-15-4mm
  • Tamiya® - TB-02 - Bearing 10-15-4mm
  • Tamiya® - Terra Crusher - Bearing 10-15-4mm
  • Tamiya® - TFF 415MS X - Bearing 10-15-4mm
  • Tamiya® - TGR - Bearing 10-15-4mm
  • Tamiya® - TGX - Bearing 10-15-4mm
  • Tamiya® - TGX-MK1 1/8 Gas - Bearing 10-15-4mm
  • Tamiya® - TNX Nitro With Steering - Bearing 10-15-4mm
  • Tamiya® - TOA-3R Series - Bearing 10-15-4mm
  • Tamiya® - Toyota Blitz TA02 - Bearing 10-15-4mm
  • Tamiya® - Toyota Castrol Celica FF02 - Bearing 10-15-4mm
  • Tamiya® - TRF 414 - Bearing 10-15-4mm
  • Tamiya® - TRF 414-DJ Pro Module Suspension - Bearing 10-15-4mm
  • Tamiya® - TRF 415 - Bearing 10-15-4mm
  • Tamiya® - TRF 415MS - Bearing 10-15-4mm
  • Tamiya® - TRF 415MS Complete - Bearing 10-15-4mm
  • Tamiya® - Volkswagon Racer Complete - Bearing 10-15-4mm
  • Tamiya® - Volkswagon Racer-Touareg - Bearing 10-15-4mm
  • Tamiya® - Volvo 850 - Bearing 10-15-4mm
  • Team Magic® - G4S - Bearing 10-15-4mm
  • Tenth Technology® - Predator - Bearing 10-15-4mm
  • Traxxas® - E-Maxx - Bearing 10-15-4mm
  • Traxxas® - E-Maxx 4WD RTR - Bearing 10-15-4mm
  • Traxxas® - Jato - Bearing 10-15-4mm
  • Traxxas® - Nitro 4 TEC RTR - Bearing 10-15-4mm
  • Traxxas® - Nitro 4-TEC Pro - Bearing 10-15-4mm
  • Traxxas® - Revo - Bearing 10-15-4mm
  • Traxxas® - S-Maxx Stadium Max RTR - Bearing 10-15-4mm
  • Traxxas® - Sport Maxx - Bearing 10-15-4mm
  • Traxxas® - T- Maxx 3.3 - Bearing 10-15-4mm
  • Traxxas® - T-Maxx 2.5 With Additional Trans - Bearing 10-15-4mm
  • Traxxas® - T-Maxx 4WD RTR - Bearing 10-15-4mm
  • Traxxas® - T-Maxx 4WD RTR With Additional T - Bearing 10-15-4mm
  • Traxxas® - T-Maxx All - Bearing 10-15-4mm
  • Traxxas® - T-Maxx With Additional Trans. BR - Bearing 10-15-4mm
  • Trinity® - G4 Nitro Touring Car-E Class - Bearing 10-15-4mm
  • Trinity® - Mongoose - Bearing 10-15-4mm
  • Trinity® - Reflex NT 1/10 Scale - Bearing 10-15-4mm
  • Trinity® - Reflex NT Nitro With Clutch Bell - Bearing 10-15-4mm
  • Trinity® - Reflex NT Without Clutch Bell - Bearing 10-15-4mm
  • Xray® - FK5 Electric - Bearing 10-15-4mm
  • Xray® - T1 - Bearing 10-15-4mm
  • Xray® - T1 Evo 2 - Bearing 10-15-4mm
  • Xray® - T1 Factory Kit - Bearing 10-15-4mm
  • Xray® - T1 FK 05 Complete - Bearing 10-15-4mm
  • Xray® - T1 Racer - Bearing 10-15-4mm
  • Xray® - T1M Mini - Bearing 10-15-4mm
  • Xray® - T2 Basic - Bearing 10-15-4mm
  • Xray® - T2 Complete - Bearing 10-15-4mm
  • Xray® - T2 With Steering - Bearing 10-15-4mm
  • Xray® - X Ray - Bearing 10-15-4mm
  • Yokomo® - GT-4 RTR - Bearing 10-15-4mm
  • Yokomo® - GT-4 RTR-II - Bearing 10-15-4mm
  • Yokomo® - GT-4R - Bearing 10-15-4mm
  • Yokomo® - GT-4W - Bearing 10-15-4mm
  • Yokomo® - GT-4W2L - Bearing 10-15-4mm
  • Yokomo® - Hot Dog - Bearing 10-15-4mm
  • Yokomo® - MR-4BC Special - Bearing 10-15-4mm
  • Yokomo® - MR-4BX - Bearing 10-15-4mm
  • Yokomo® - MR-4MT - Bearing 10-15-4mm
  • Yokomo® - MR-4TC - Bearing 10-15-4mm
  • Yokomo® - MR-4TC BD - Bearing 10-15-4mm
  • Yokomo® - MR-4TC Custom - Bearing 10-15-4mm
  • Yokomo® - MR-4TC SD CGM - Bearing 10-15-4mm
  • Yokomo® - MR-4TC SD CM Drift Package - Bearing 10-15-4mm
  • Yokomo® - MR-4TC SD SSG /Black - Bearing 10-15-4mm
  • Yokomo® - MR-4TC SP - Bearing 10-15-4mm
  • Yokomo® - MR-4TC With Bell Crank Steering - Bearing 10-15-4mm
  • Yokomo® - MX4 - Bearing 10-15-4mm
  • Yokomo® - Works 93 - Bearing 10-15-4mm
  • Yokomo® - YR-4 - Bearing 10-15-4mm
  • Yokomo® - YR-4 II - Bearing 10-15-4mm
  • Yokomo® - YR-4GP - Bearing 10-15-4mm
  • Yokomo® - YR-4M - Bearing 10-15-4mm
  • Yokomo® - YRF-2 - Bearing 10-15-4mm
  • Yokomo® - YZ10 - Bearing 10-15-4mm
  • Yokomo® - YZ10W - Bearing 10-15-4mm

Cross References

  • Sealed Width A 6700 / 4
  • Sealed 6700A / 4
  • 6700A Basic Size Ref
View full details
6700A-2RB-ECODiagram6700A-2RB-ECOImage
