P-XL-010-150C - Datasheet

MBA

Category Information

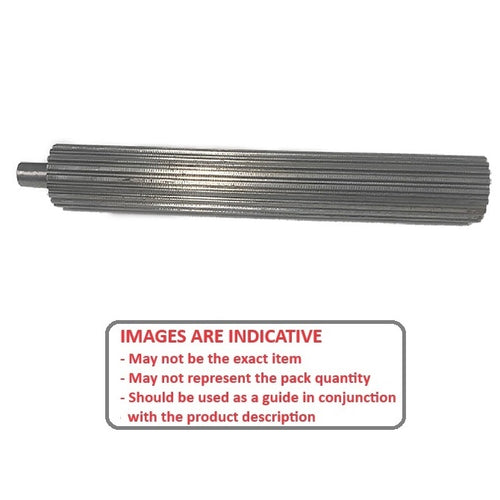

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel

Carbon Steel 5.080mm Pitch XL Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Product Data

  • Number of Teeth : 10

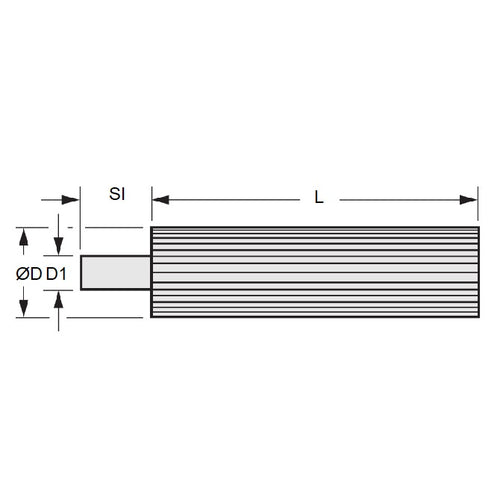

  • Min. Usable Length (L) 150.0 mm
    (Equiv. 5.906 in.)
  • Pitch Diameter (PD) 16.20 mm
    (Equiv. 0.638 in.)
  • Outside Diameter (OD) 15.67 mm
  • Shank Diameter (D1) 13.00 mm
  • Shank Length (Sl) 22.0 mm
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 10XL-PS6S
  • 10XLPS6S
  • A6C2M10XL15
  • A6C2-10XL06
  • A6C210XL06
