OW-0100-0140-0120-R - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 10.000 mm
    (Equiv. 0.394 in.)
  • OD (D) 14.000 mm
    (Equiv. 0.551 in.)
  • Width (B) 12.000 mm
    (Equiv. 0.472 in.)
  • Overrun Limiting Speed 19000 RPM
  • Type Drawn Cup Standard
  • Bearings Material Steel
  • Max Torque 5.3 N.m
  • Cage Material Steel
  • Material Chrome Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Applications & Uses

    • RC Helicopter Parts
    • Bergen Machine - Intrepid 60 - Roller Clutch Bearing 10-14-12mm
    • Hirobo - Lepton EX - Roller Clutch Bearing 10-14-12mm
    • Schluter - Junior 50 - 3456 Roller Clutch Bearing
    • Schluter - Magic - 3456 Roller Clutch Bearing

    Cross References

    • SHIMANO 2925
    • 6392K43
    • SHIMANO BR0137-One-Way
    • INA F-22870
    • Torrington FC-10-K
    • INA HF1012
    • INA HF1012KF
    • S99NH3MURC1012
    • FC10K
    • F22870
    • BR0137OneWay
    View full details

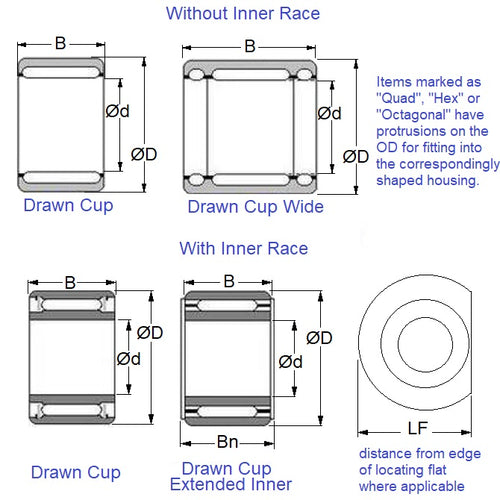

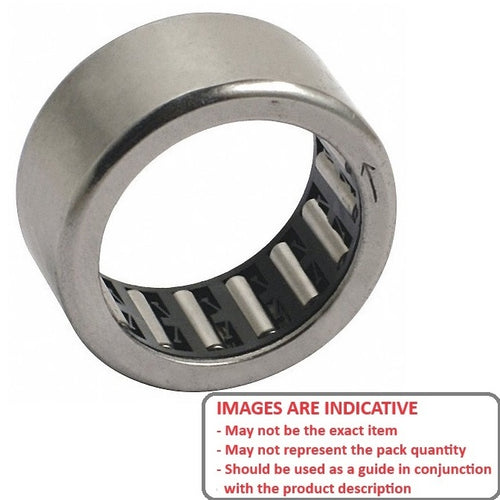

    OW-0100-0140-0120-RDiagramOW-0100-0140-0120-RImage
