W0100-ALN-CBH - Datasheet
MBA
Category Information
Washers - Self Aligning - Components - Hardened SteelHardened Steel Components Self Aligning Washers. Spherical Seat Washers. Washer A (aligning) and washer B (seat) sold separately.
- Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.

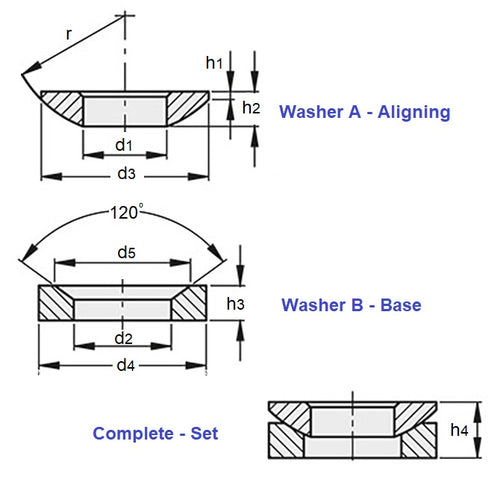

- Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.
- Case Hardened steel 9 S Mn Pb 28 K DIN 6319.
- Order a base washer and an aligning washer to make a complete unit.
- Max Shaft Size Shown will allow 3 Deg of misalignment.
- DIN 6319-G washers are used for clamping mechanical parts with non-parallel surfaces.
- Designed for screw solidity in compliance with 8.8. Limited for use on flat closed ring areas - not for elongated holes.
Product Data
- Suitable Shaft or Bolt Size
:
10.00
mm
(Equiv. 0.394 in.) - Bore Size (d1 or d2)
12
mm
(Equiv. 0.472 in.) - OD (d3)
30.00
mm
(Equiv. 1.181 in.) - Thickness (h2 or h3) 5.0 mm
- Overall Thickness (h4) 7.1 mm
- Static Load Rating 26 Max. kN

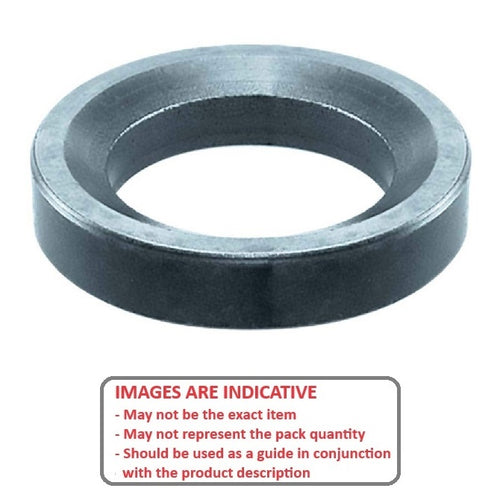

- Type Washer B (Base)
- Actual ID (Ref) 10 mm
- Standard DIN 6319G
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- AMF202
- AMF-202
