PLI-P-100-250-19L-L-BG - Datasheet

MBA

Category Information

Plungers - Indexing Precision - Ball Grip - Locking

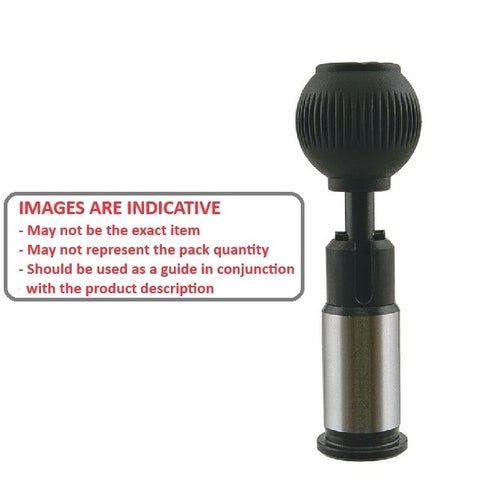

Locking Ball Grip Indexing Precision Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

    Product Data

    • Body Diameter (I) : 16.00 mm
      (Equiv. 0.63 in.)
    • Body Length (D) 31.0 mm
      (Equiv. 1.22 in.)
    • Initial End Force 1.9 N
    • Final End Force 3.0 N
    • Tip Diameter (A) 10.0 mm
    • Min K 6.0 mm
    • Knob Diameter (B) 25.0 mm
    • Knob Length (G) 32.5 mm
    • Internal Thread of Grip Ball M6.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-867
      • KBP867
      View full details

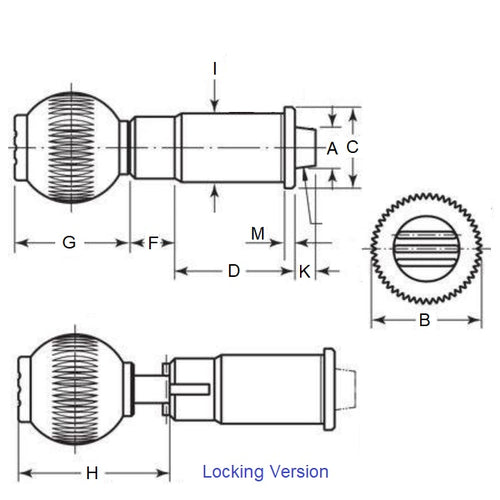

      PLI-P-100-250-19L-L-BGDiagramPLI-P-100-250-19L-L-BGImage
