MSM-254C-203-CGCAB - Datasheet
MBA
Category Information

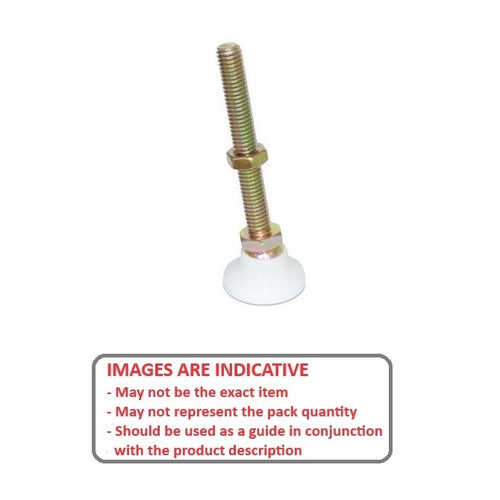

Mounts - Levelling Studded - Swivel - Gold Chromate - Acetal BaseAcetal Base Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

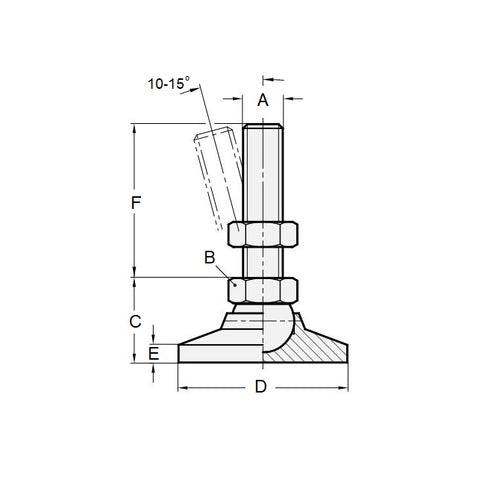

- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
50.8
mm
(Equiv. 2 in.) - Thread Length (F) 203.2 mm
- Base Height (E) 13.49 mm
- Overall Height 254.0 mm
- Load Rating 1090 Kg
- Finish Gold Chromate
- Pad Material Delrin
- Hex Flats (B) 47.625 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM1090254CLGA
- TD5
- TD-5
