CCI-10800-C - Datasheet
MBA
Category Information

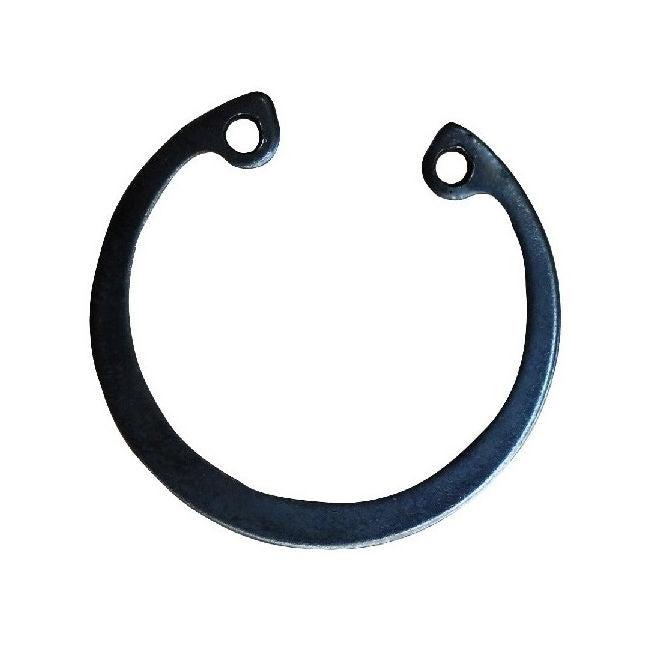

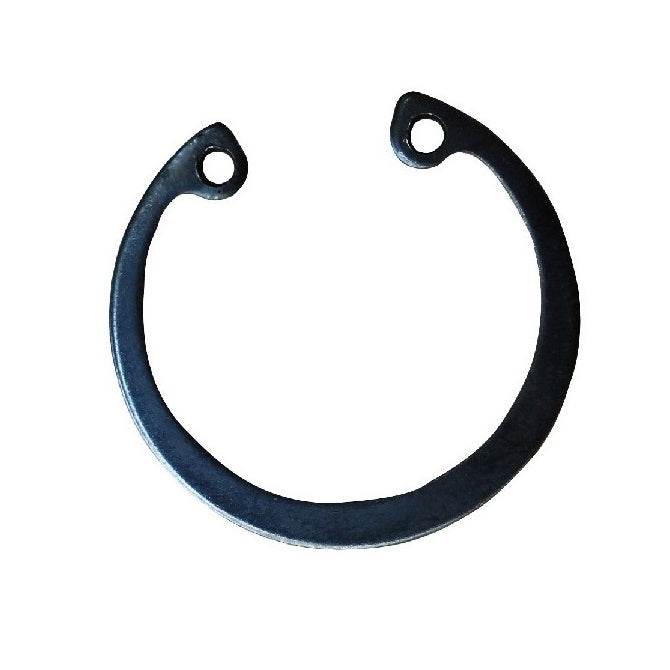

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
108.00
mm
(Equiv. 4.252 in.) - Clip Thickness (T)
4.00
mm
+ 0.54 / - 0.00
(Equiv. 0.157 in.) - Groove Dia. (Dg)
112.00
mm
+ 0.00 / - 0.10
(Equiv. 4.409 in.) - Approx. Loose Circlip OD (Dr) 115.00 mm + 1.30 / - 0.54
- Groove Width (W) 4.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 88.00 mm
- Clearance in Groove (C1) 93.00 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 6.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-108
- Bossard BN-822-108
- Waldes D1300-108
- NoCor DHO-108
- Rotor Clip DHO-108
- Seeger J-108
- Seeger J108-WAS
- Seeger J108X4
- J108WAS
- D1300108
- DHO108
- 472108
- BN822108
