MSKMA45X12RS - Datasheet
MBA
Category Information

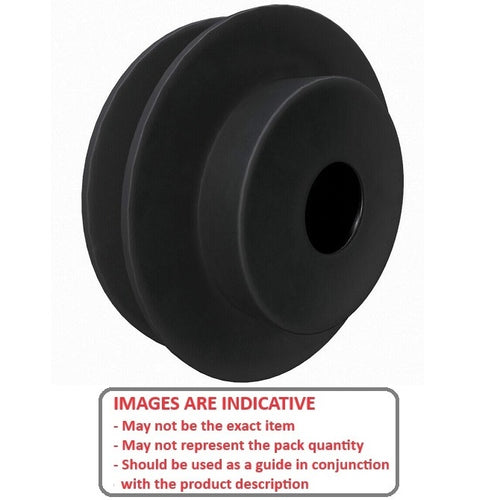

Pulleys - Vee - A or 4L - Single Row Through Bore - Cast IronCast Iron Single Row Through Bore A or 4L Vee Pulleys. Dual purpose pulleys suit A section and M section belts
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- To determine the pitch diameter for M section deduct 8.636mm (0.34 inch) from the pitch diameter listed
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch Diameter
:
106.68
mm
(Equiv. 4.2 in.) - Bore
12.70
mm

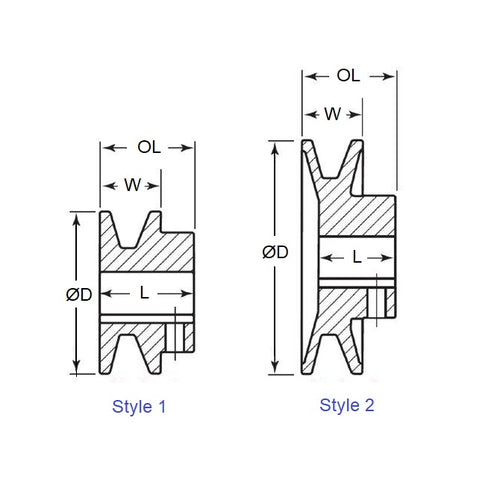

(Equiv. 0.5 in.) - Style 2
- Overall Width 34.93 mm
- Outside Diameter 113.03 mm
- Material Cast Iron
