Miniature Bearings Australia
RR-330RS - Datasheet
MBA
Category Information

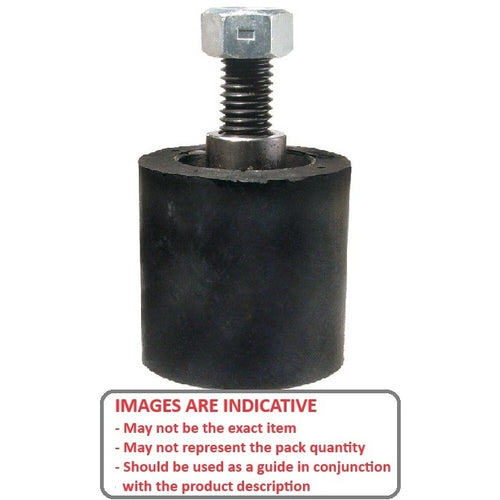

Rollers - Solid Stud Mount - Black NeopreneBlack Neoprene Solid Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Complete with washer and locknut
- Free idling with ball bearings
Product Data

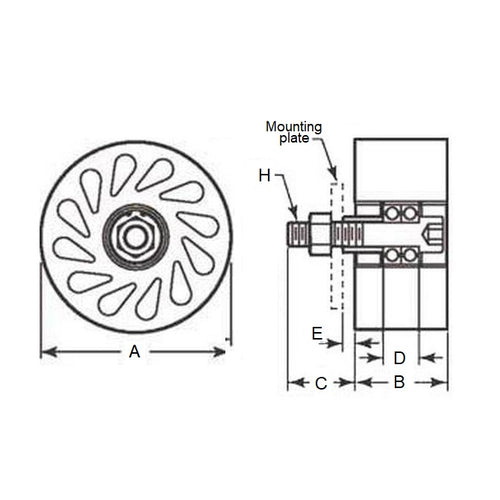

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Roller Width (B)
49.28
mm
(Equiv. 1.94 in.) - Thread
1/2-13 UNC (12.7mm)
(Equiv. 0.039 in.) - Thread Length (C) 35.814 mm
- Bearing Overall Width (D) 19.050 mm
- E 6.350
- Shore A Durometer 80
- Number of Bearings 2
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 22875T41-80A
- 22875T4180A
