Miniature Bearings Australia
RR-386RS - Datasheet
MBA
Category Information

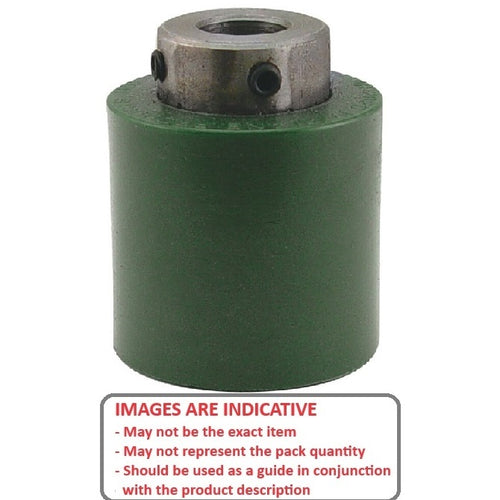

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data
- Diameter (A) : 101.60 mm
- Length (B) 49.28 mm
- Bore (E) 25.43 - 25.55 mm
- Hub Projection (C) 12.700
- Durometer 60
- Colour Blue
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 6475K76-60A
- 6475K7660A
