RR-362RS - Datasheet
MBA
Category Information

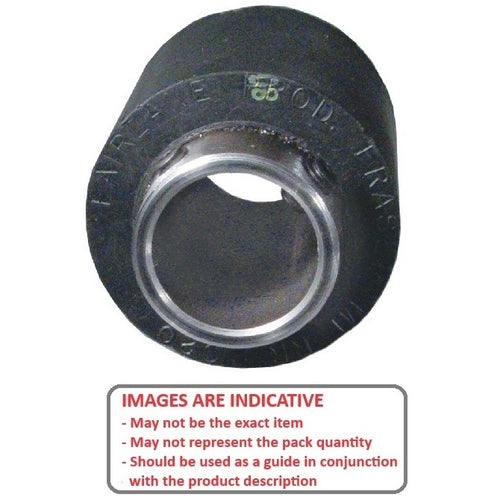

Rollers - Solid Shaft Mount - Black NeopreneBlack Neoprene Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data

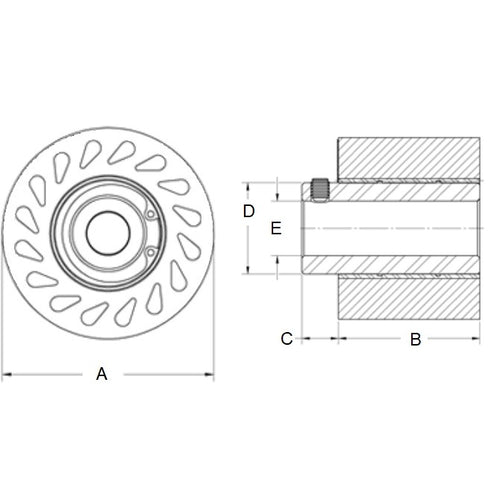

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Length (B)
49.28
mm
(Equiv. 1.94 in.) - Bore (E)
19.08 - 19.20
mm
(Equiv. 0.751 in.) - Hub Projection (C) 12.700
- Durometer 60
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- KaVo RR-362
- RR362
