Miniature Bearings Australia
RR-428RS - Datasheet
MBA
Category Information

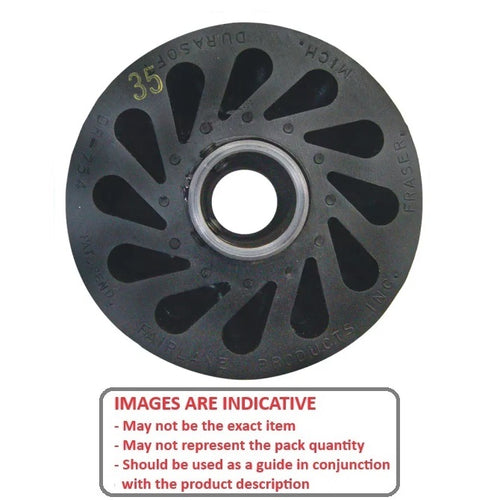

Rollers - Durasoft Shaft Mount - NeopreneNeoprene Durasoft Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
Product Data
- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Length (B)
49.28
mm
(Equiv. 1.94 in.) - Hub Projection (C)
12.700
mm
(Equiv. 0.5 in.) - Bore (E) 25.43 - 25.55 mm
- Durometer Shore A 35
- Material Neoprene Rubber 35A
Product Compliance and Data
Additional Resources
Cross References
- 2497K16
