RR-426RS - Datasheet

MBA

Category Information

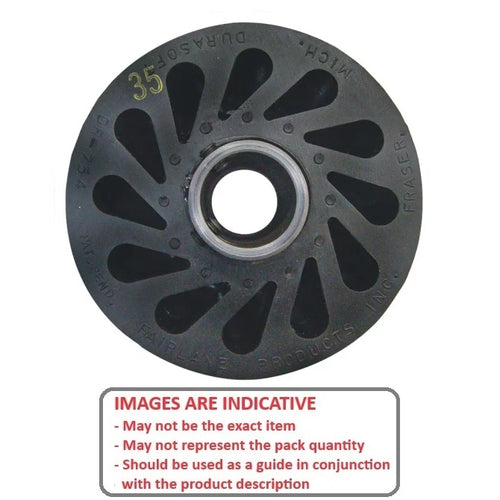

Rollers - Durasoft Shaft Mount - Neoprene

Neoprene Durasoft Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.

  • Designed for use in machines and assembly operations where part movement and protection is needed.
  • Durasoft rollers have a gentle but firm touch.
  • Unique shape of holes adds to their soft but resilient nature.

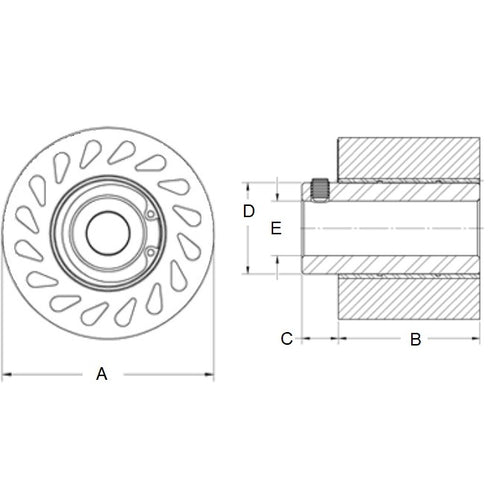

Product Data

  • Diameter (A) : 101.60 mm
    (Equiv. 4 in.)
  • Length (B) 49.28 mm
    (Equiv. 1.94 in.)
  • Hub Projection (C) 12.700 mm
    (Equiv. 0.5 in.)
  • Bore (E) 25.43 - 25.55 mm
  • Durometer Shore A 20
  • Material Neoprene Rubber 20A
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 2497K6
