RR-334RS - Datasheet
MBA
Category Information

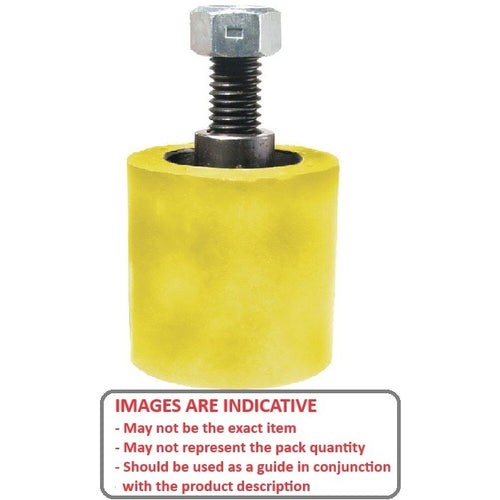

Rollers - Solid Stud Mount - Coloured UrethaneColoured Urethane Solid Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Blue colour may turn a shade of green when exposed to UV lighting
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Complete with washer and locknut
- Free idling with ball bearings
Product Data

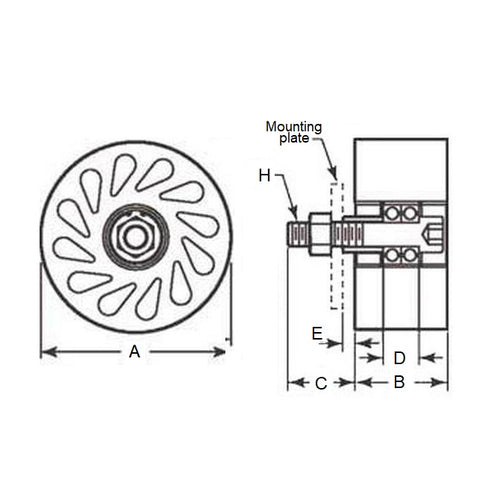

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Roller Width (B)
23.37
mm
(Equiv. 0.92 in.) - Thread
1/2-13 UNC (12.7mm)
(Equiv. 0.039 in.) - Thread Length (C) 27.940 mm
- Bearing Overall Width (D) 9.525 mm
- E 3.175
- Shore A Durometer 35
- Number of Bearings 1
- Colour Yellow
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 2372T9-35A
- 2372T935A
