Miniature Bearings Australia
RR-357RS - Datasheet
MBA
Category Information

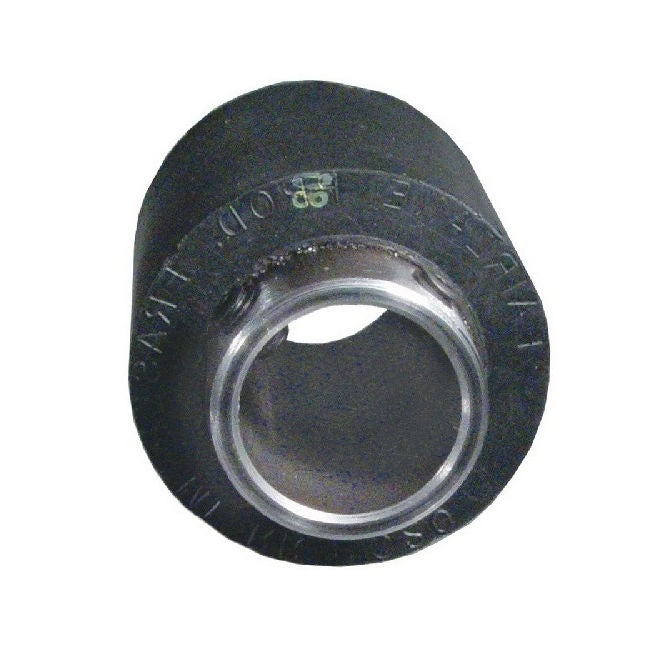

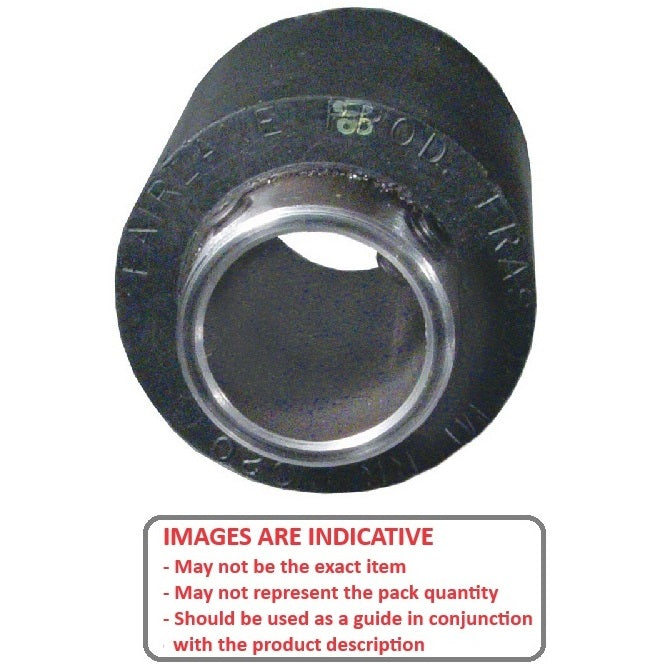

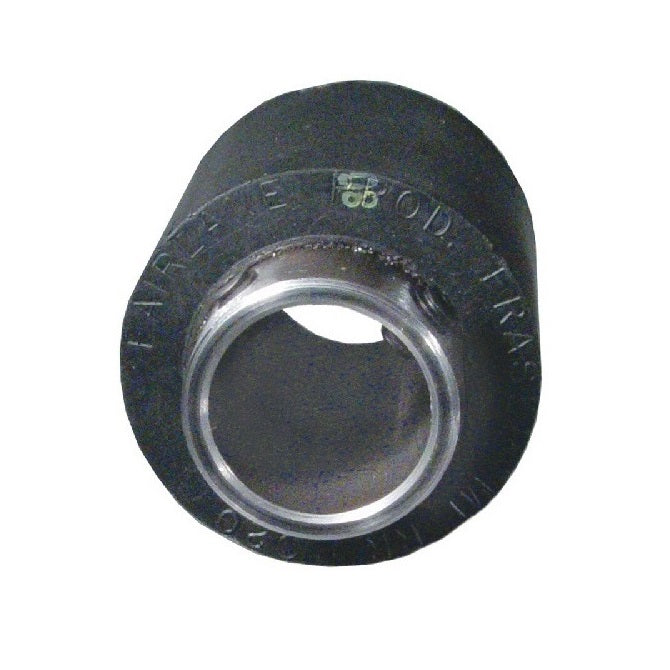

Rollers - Solid Shaft Mount - Black NeopreneBlack Neoprene Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data

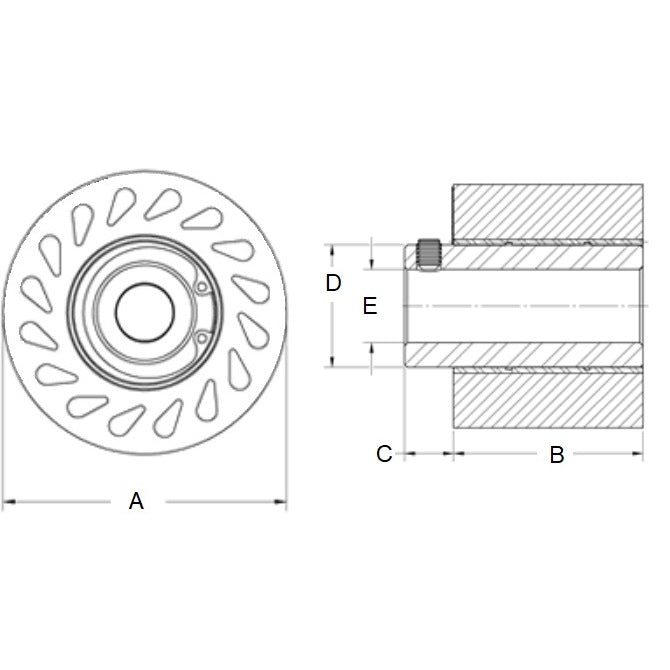

- Diameter (A) : 101.60 mm
- Length (B) 23.37 mm
- Bore (E) 19.08 - 19.20 mm
- Hub Projection (C) 12.700
- Durometer 35
- Material Neoprene Rubber
