RR-473RS - Datasheet

MBA

Category Information

Rollers - Durasoft Shaft Mount - Urethane

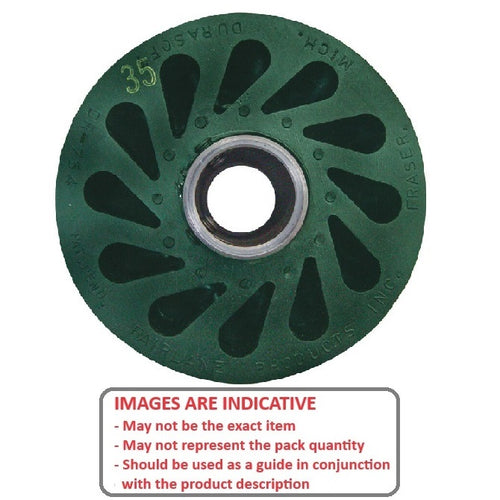

Urethane Durasoft Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.

  • Designed for use in machines and assembly operations where part movement and protection is needed.
  • Durasoft rollers have a gentle but firm touch.
  • Unique shape of holes adds to their soft but resilient nature.
  • Blue colour may turn a shade of green when exposed to UV lighting

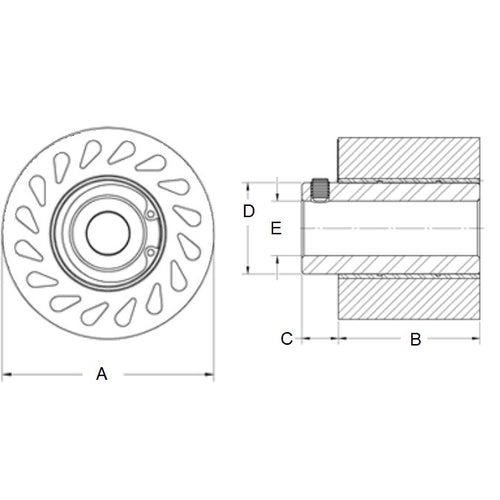

Product Data

  • Diameter (A) : 101.60 mm
    (Equiv. 4 in.)
  • Length (B) 23.37 mm
    (Equiv. 0.92 in.)
  • Hub Projection (C) 12.700 mm
    (Equiv. 0.5 in.)
  • Bore (E) 15.90 - 16.03 mm
  • Durometer Shore A 60
  • Colour Blue
  • Material Polyurethane
Country of Origin: US
