RR-1510RS - Datasheet
MBA
Category Information

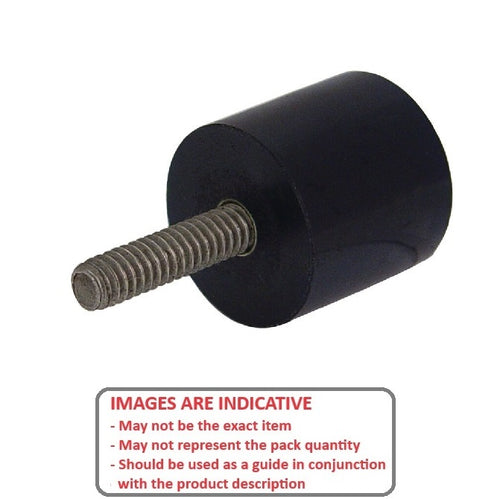

Bumpers - Cylindrical Male Thread - StandardStandard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers
- Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
- The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
- These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.
Product Data

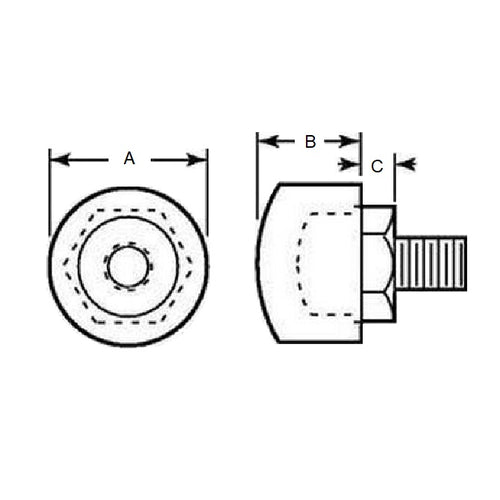

- Diameter (A)
:
101.600
mm
(Equiv. 4 in.) - Height (B)
101.600
mm
(Equiv. 4 in.) - Thread 1/2-13 UNC (12.7mm)
- Thread Length 33.325 mm
- End Flat with radiused Edges
- Durometer 60A
- Colour Black
- Material Polyurethane
