ED130RS - Datasheet

ACE

Category Information

Shock Absorbers - Double Acting Hydraulic

Double Acting Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 101.6 mm
      (Equiv. 4 in.)
    • Type Tension and Adjustable
    • Length (F/L) 225.30 / 249.17 mm
      (Equiv. 8.87 in.)
    • Max Extention 351 mm
    • Max Propelling Force Exten 204 KG
    • Max Propel Force Compression 170 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-130
      • ED130
      View full details

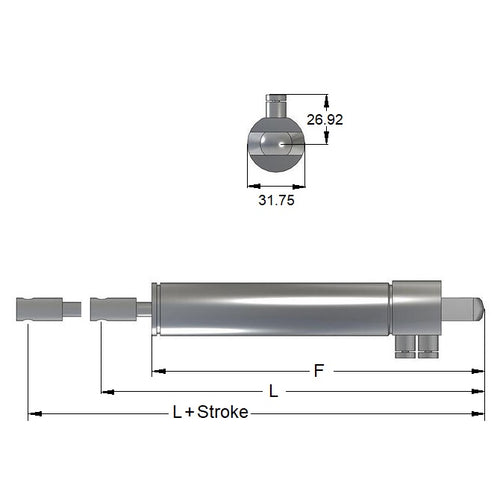

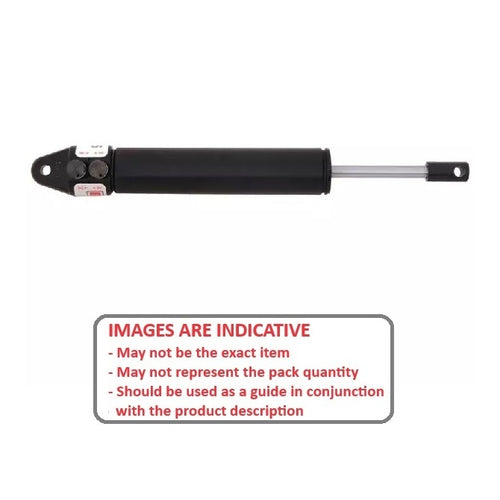

      ED130RSDiagramED130RSImage
