RR-1167RS - Datasheet
MBA
Category Information

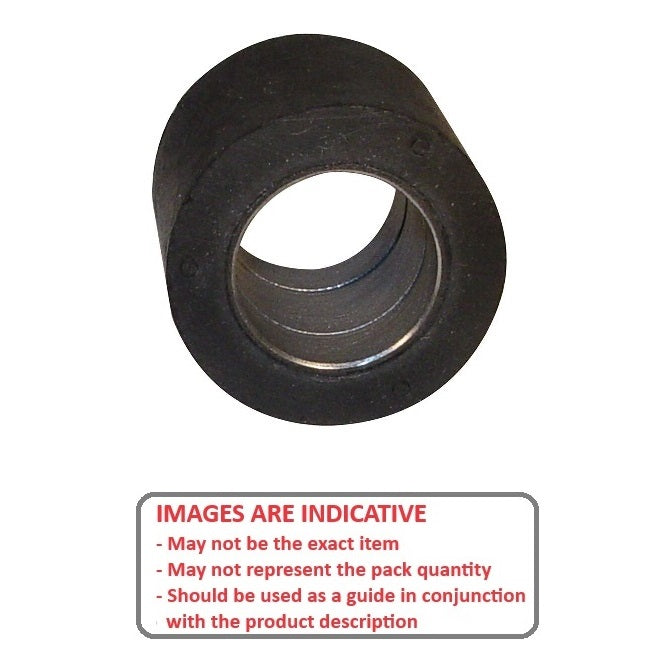

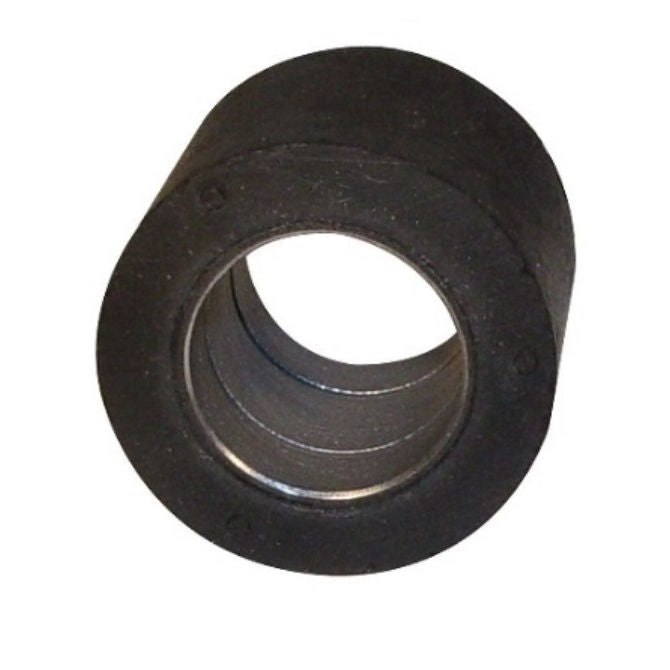

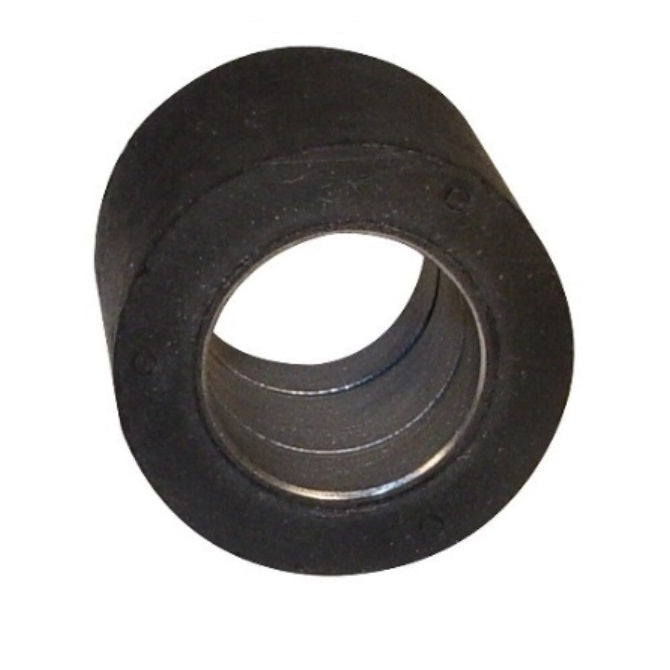

Rollers - Solid Shaft Mount - Bonded Insert - Black NeopreneBlack Neoprene Bonded Insert Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data

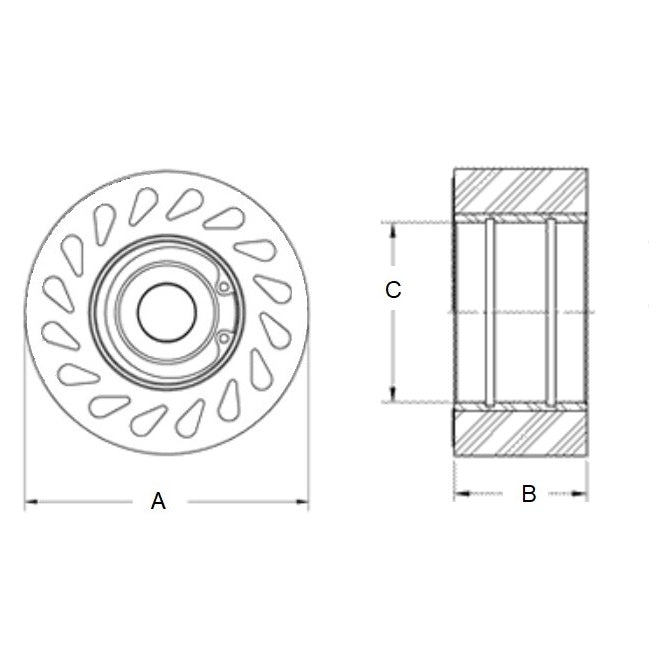

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Length (B)
49.28
mm
(Equiv. 1.94 in.) - Bore (C)
31.80 - 31.90
mm
(Equiv. 1.252 in.) - Durometer 80
- Material Neoprene Rubber
