P-MXL-100-064P-AL-G-079 - Datasheet
MBA
Category Information

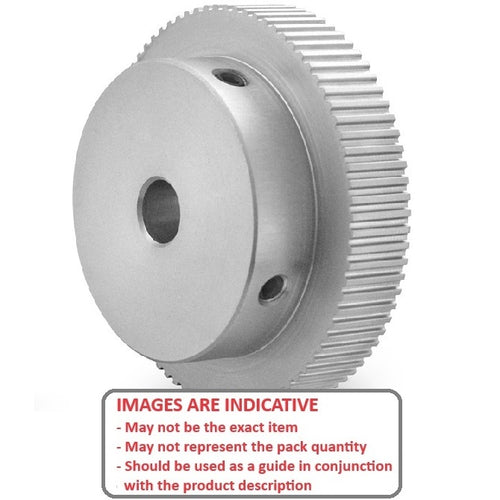

Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Aluminium - ThroughThrough Aluminium 6.4mm Wide 2.032mm Pitch MXL Inch Timing Pulleys. Timing Pulleys to suit MXL 2.032mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- 2.032mm metric is equivalent to 0.080 pitch imperial
Product Data
- Number of Teeth : 100
- Max Belt Width
6.40
mm
(Equiv. 0.252 in.) - Bore (d)
7.938
mm
(Equiv. 0.313 in.) - Bore Type Finished
- Type 3
- Pitch Dia. (PD) 64.65 mm
- Overall Length 19.1 mm
- Hub Diameter (HD) 38.1
- Locking Type Set Screw
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 100MP025-6A4
- 100MP0256A4
- A6A16100NF2510
- A6A16-100NF2510
